Air Compressor Cooler
JOY Cooper Cameron InterCooler Replacement
Main Parameters
Available inter cooler models:
TA18,TA28,TA38,TA48,TA20,TA30,TA40,TA50,TA60,TA70
TA2000,TA3000,TA6000,TA9000,TA11000,TA20000
3MSG16,3MSG15,C-8 Series,MSG-4,MSG-6,MSG-8
Introduction to Cameron Compressors
The CAMERON compressor brand was formerly known as JOY. Founded in 1955, JOY specializes in centrifugal gas compressors, with over 50 years of industrial history. Building on the American Joy Compressor Company foundation, Cooper Compression Systems continued innovation in centrifugal compression technology.
Since producing its first centrifugal compressor in 1956, Cooper compressors have been installed worldwide, from Alaska to Middle Eastern deserts. The product range covers 14 m3/min to 5000 m3/min and pressure from 1 Bar to 85 Bar, including air, process gases and exhaust gases. Systems are designed for long-term continuous operation, energy efficiency, easy operation and maintenance.
Brand History
JOY founded in 1955, later known as CAMERON in centrifugal compressor market applications.
Global Installation
Operating across diverse environments, from extreme cold to high-temperature regions.
Wide Operating Range
Flow and pressure coverage for air, process gas, and exhaust gas compression.

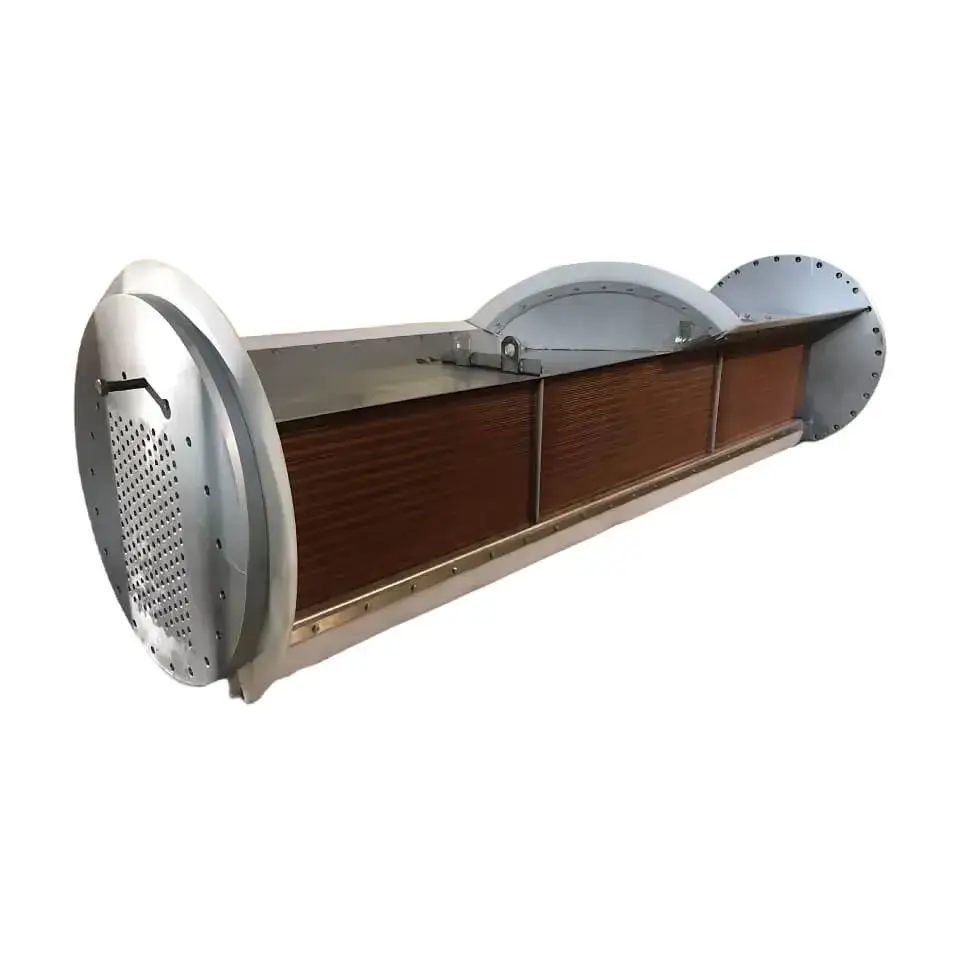

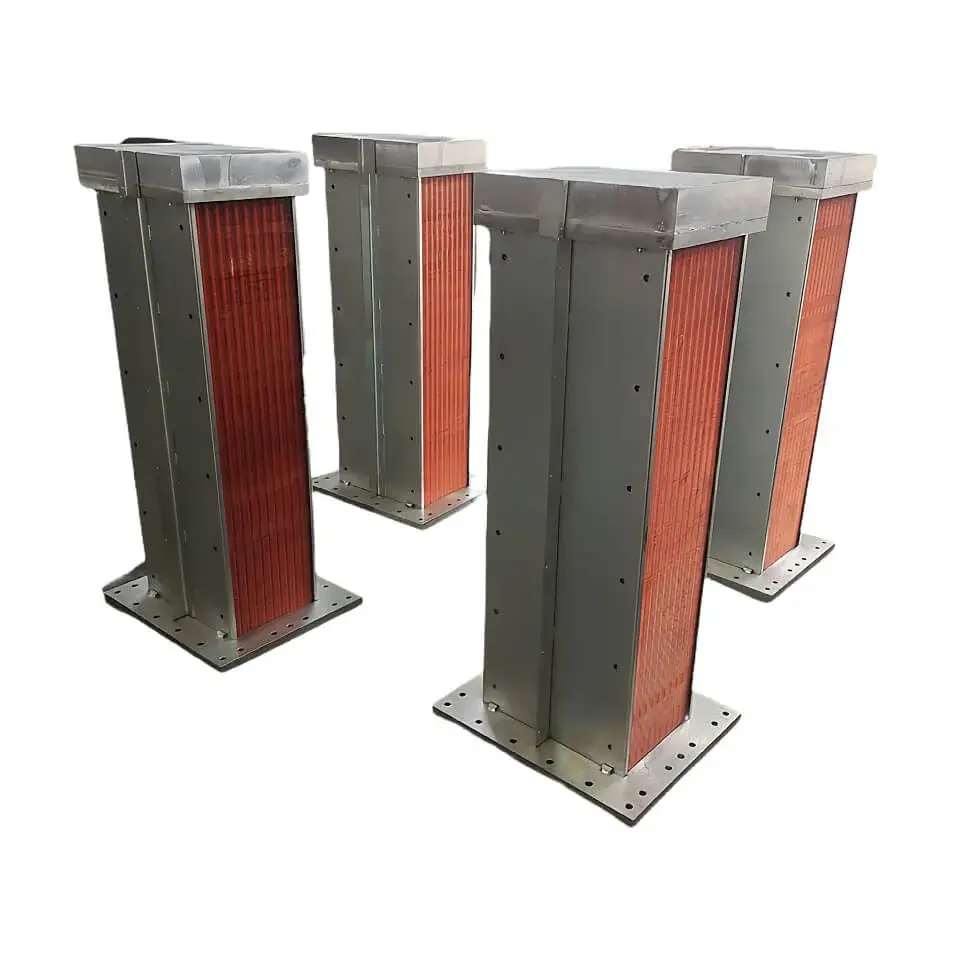

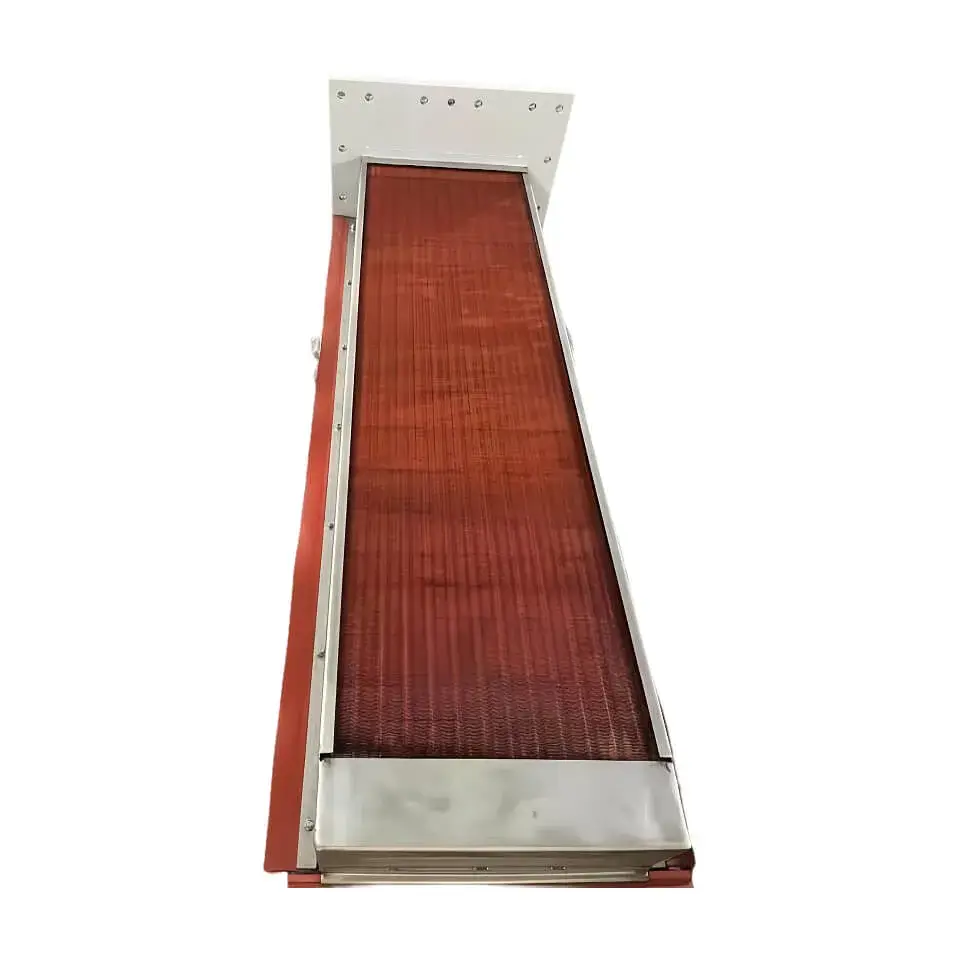

Intercooler Structure
1
The intercooler is mounted on compressor housing, with casing support from the housing structure.
2
A removable water tubing bundle enables mechanical cleaning, and inlet/outlet water connections can be removed externally.
3
Air flows outside finned tubes while water flows inside; all components are tested at 1.5 times operating pressure and manufactured to ASME standards.
Application
CAMERON (formerly COOPER) centrifugal compressors are used in air separation, steel, petrochemical, chemical, textile, pharmaceutical, power generation, automotive, glass, electronics and papermaking industries.
Materials Information
Copper Tubes
Cooper/Aluminum Fins
Stainless steel cover plate
Cameron Series
| Series | Min Flow | Max Flow | Min Pressure | Max Pressure |
|---|---|---|---|---|
| TA2000 | 14 m³/min | 50 m³/min | 3 Bar | 14 Bar |
| TA2000 Air-cooled | 14 m³/min | 50 m³/min | 3.5 Bar | 10 Bar |
| TA2020 | 28 m³/min | 60 m³/min | 3.5 Bar | 8.6 Bar |
| TA3000 | 56 m³/min | 120 m³/min | 2.3 Bar | 16 Bar |
| TA6000 | 113 m³/min | 250 m³/min | 2.3 Bar | 16 Bar |
| TA9000 | 184 m³/min | 350 m³/min | 0.9 Bar | 16 Bar |
| TA11000 | 212 m³/min | 400 m³/min | 2.3 Bar | 20 Bar |
| TWINTURBO | 14 m³/min | 250 m³/min | 2.3 Bar | 16 Bar |
| TA2040/TA6040 High Pressure | 42 m³/min | 170 m³/min | - | 42 Bar |
| TDP Combination Heat Drying | 140 m³/min | 120 m³/min | 2.3 Bar | 15 Bar |
| TA Series | 35 m³/min | 800 m³/min | 1 Bar | 70 Bar |
| MSG Series | 35 m³/min | 5000 m³/min | 2 Bar | 85 Bar |
| MSG Alpha | - | - | - | 82 Bar |
| TA Blower | 35 m³/min | 500 m³/min | 1.3 Bar | 5.5 Bar |
| Multiple Process Air/Nitrogen Combination | - | - | - | - |
| TG 2040 Biogas/Exhaust Centrifugal | 42 m³/min | 50 m³/min | - | 42 Bar |
| Fuel Gas Booster | - | 3000 m³/min | - | 100 Bar |
