Air Compressor Cooler
FS Elliott Air Compressor Cooler
We offer high-quality coolers specifically designed for Fusheng centrifugal air compressors
P270/P330/P550/P950/1100DA/P300/P400/P500/P600/P700
220DA3/270DA3/330DA3/550DA3/950DA3/1100DA3
PP0576-2904/PP0576-70/PP0577-70/FP0502-01/FP0503-01
Introduction to Fusheng Elliott Air Compressor
Fusheng Elliott (FS-Elliott) is a high-end oil-free centrifugal air compressor brand built by Fusheng Group with core technology from American centrifugal compressor pioneer Elliott. It is widely used in large-scale industrial compressed air systems.
Brand Background
Elliott invented the integral gear-type multi-stage centrifugal air compressor in 1962, with over 60 years of technical experience.
Main Models
PAP Plus series and Polaris series are the main FS-Elliott compressor platforms.
Cooling System
Tube-fin cooler structure with copper alloy tubes and copper or aluminum fins.
Brand Background
1
Elliott invented the integral gear-type multi-stage centrifugal air compressor in 1962, with over 60 years of technical experience.
2
In 2003, Fusheng Group acquired Elliott PAP Plus product technology and established FS-Elliott.
3
Products are used in more than 90 countries worldwide.
Main Models and Parameters
Main Series
- PAP Plus Series: 270DA3, 330DA3, 550DA3, 800DA3, 950DA3, 1100DA3
- Polaris Series: P300, P400, P500, P600, P700
Key Parameters
- Air Flow Rate: 50-350 Nm3/min
- Inlet Air Temperature: 100-145°C
- Inlet Cooling Water Temperature: <=32°C
- Outlet Air Temperature: <=42°C
- Working Pressure: 0.3-1.3 MPa
- Power Range: 200-3000 HP

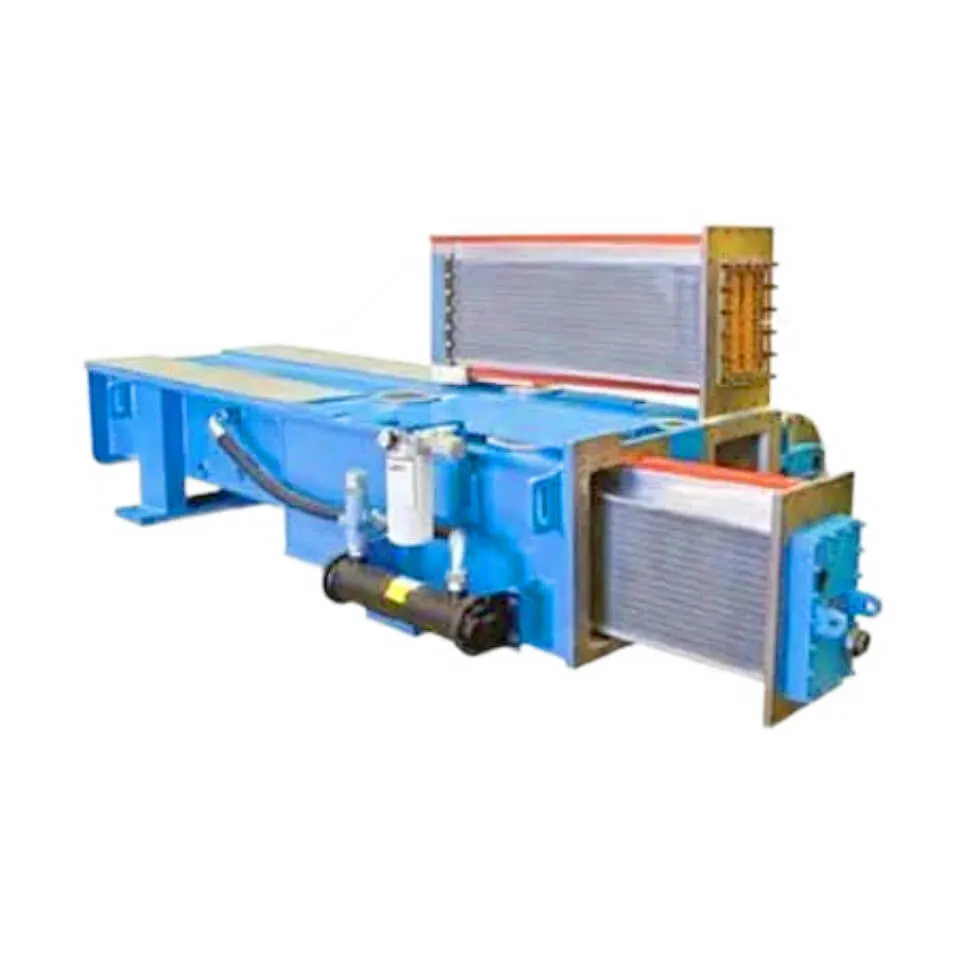

Core Structure and Cooling System
- Impellers: 17-4PH stainless steel backward-curved impellers.
- Precision integral gearbox, low vibration.

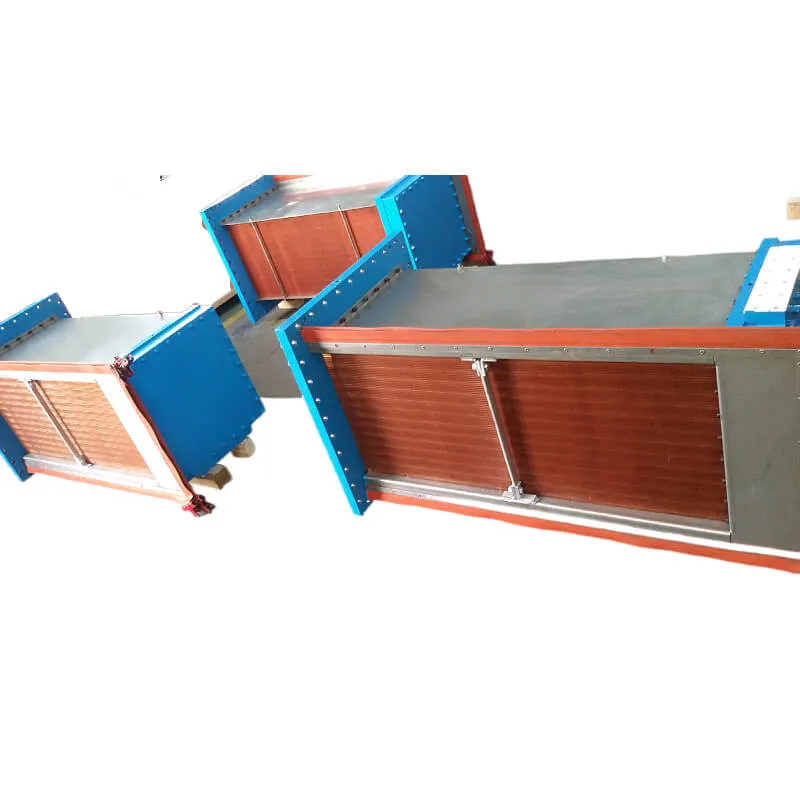

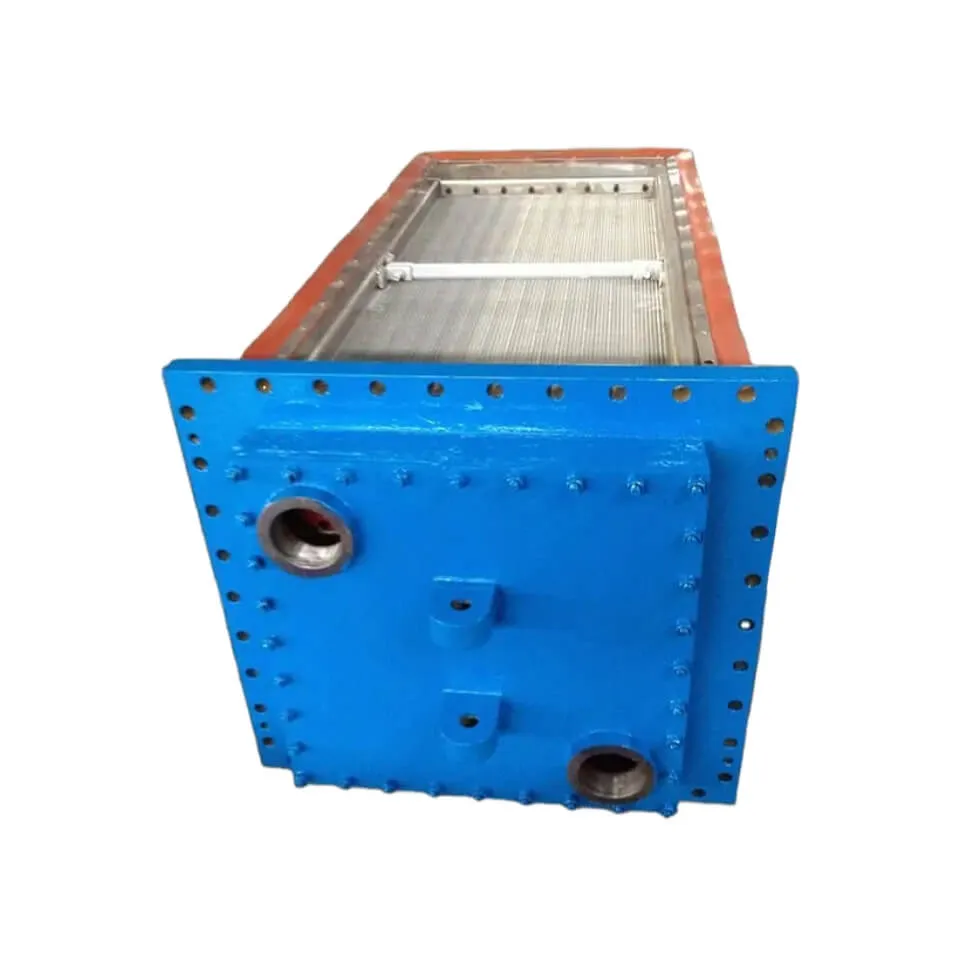

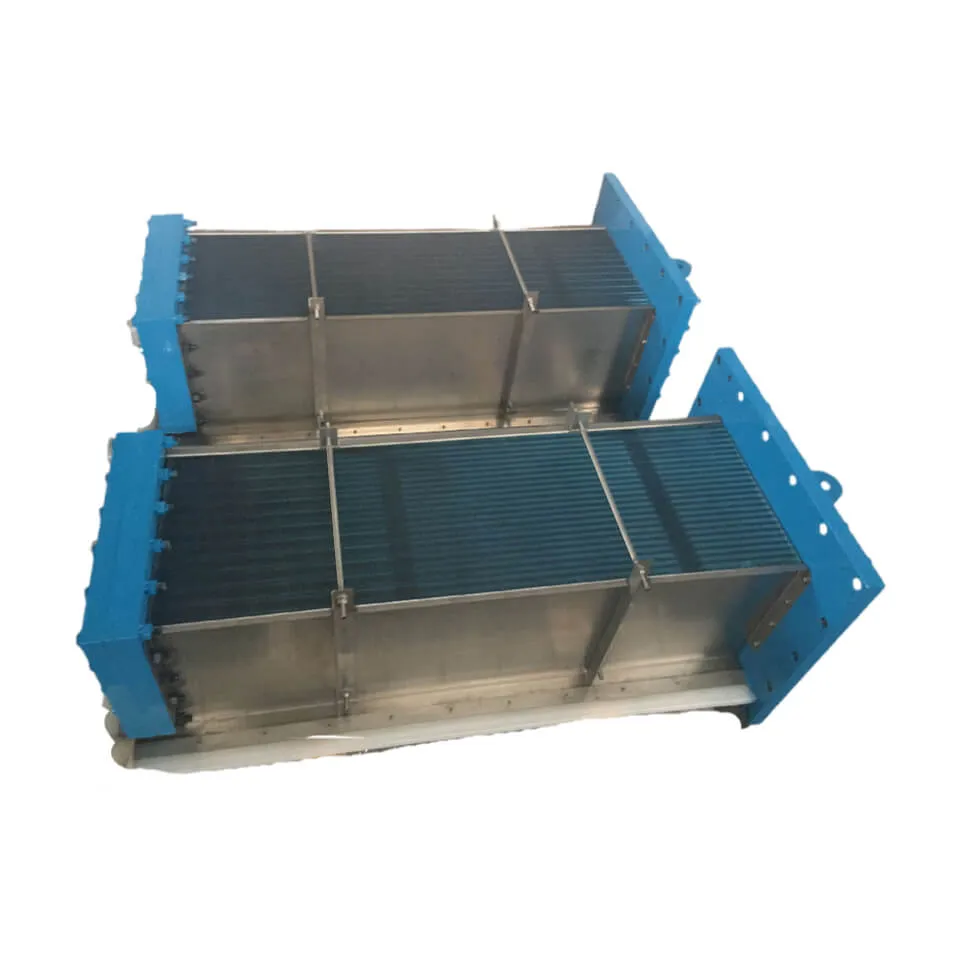

- Cooler: tube-fin heat exchanger, same as original design concept.
- Heat exchange tubes: BFe10-1-1 copper alloy or T2 red copper.
- Fins: red copper or aluminum.
- 304 stainless steel parts and Q345R carbon steel tube sheet.
Main Advantages
100% oil-free: ISO 8573-1 Class 0 certified.
High energy efficiency.
Low maintenance cost.
Intelligent control system (Regulus).
Localized spare parts support.
Application Industries
Chemical, steel, pharmaceutical, electronics, semiconductor, automotive, glass, food and beverage, and large industrial air compressor stations.
FS Elliott Cooler Model Reference
The table below lists available FS Elliott cooler model references for replacement selection.
Available FS Elliott Cooler models for:
| 71131-71001 | 71106-71000 | 71184-71000 | BCY-870ULT | JP0562-1MT |
| 2117010153 | 71106-75000 | 71184-75000 | BCY-885T | JP0563-1MT |
| 2117010162 | 711196-71000 | 71186-71000 | CY-1085U4FLTB-1 | JP0564-1MT |
| 2117010163 | 711196-75000 | 71186-75000 | CY-870U2FLTB-1 | P2276D780-MT |
| 2605510762 | 71131212-58000 | 71188-71000 | FC-419U3FT | P300 |
| 2605510930 | 71131212-71000 | 71188-71002 | FC-419U3T | P400 |
| 2605510960 | 71131-71000 | 71188-75000 | FC-554U1T | P500 |
| 2605510961 | 71131-71001 | 71188-75002 | FC-554UIT | P600 |
| 2605511010 | 71131-71001-16 | 7341311-59000 | FCY-416T-1 | P700 |
| 2605511020 | 71131-71001-16K | 73441311-59000 | FCY-650U2FT | PP0576-2904 |
| 2605511021 | 71131-71002 | 73451111-58000 | FCY-650U34FLT | PP0576-70 |
| 2605511240 | 71131-75000 | 73451111-59000 | FCY-650U3FT | PP0577-70 |
| 2605511330 | 71141212-59000 | 73451171-58000 | FCY-650U4FLT | RC-542U2T |
| 2605511350 | 71141212-59002 | 73461311-58000 | FCY-650U4FLTB | RC-645UITA |
| 2605511370 | 71141312-58000 | 73461311-59000 | FCY-650U4FT | S0501004 |
| 2605511520 | 71141312-59001 | 73461411-58000 | FCY-650U4LFLT | S0501004(0) |
| 2605511630 | 71142271-58000 | 73461411-71000 | FCY-650U4LFT | S0501004-50 |
| 2605511632 | 71142271-71000 | 73461511-58001 | FCY-650ULFT | S0501012 |
| 2605511720 | 71142273-58000 | 73461511-59001 | FCY-650W1FLT | S0502001 |
| 2606510801 | 71142273-71000 | 73472-71000 | FCY-660U1T | S0502012-50 |
| 2606510880 | 71151171-58000 | 73482-71000 | FCY-870FLF1 | S0502014-50 |
| 2606510910 | 71151171-71000 | 73482-75000 | FCY-870FLT | S0502015-100 |
| 2606510911 | 71151172-58000 | 73483-71000 | FCY-870FLT | S0502015-100(0) |
| 2606510980 | 71151172-58001 | 73483-75000 | FCY-870FLT-1 | S0502016(0) |
| 2606511010 | 71151172-71000 | 73485-71000 | FCY-870LT | S0504003 |
| 2606511011 | 71151172-71001 | 73485-75000 | FCY-870U1LFT | S0504003(0) |
| 2606511041 | 71151272-58000 | 91104-10100 | FCY-870U2FLT | S0504006 |
| 2606511060 | 71151272-58001 | 91104-10100-16 | FCY-870U2FLT-1 | S0504006(4) |
| 2606511780 | 71151272-71000 | 91104-10100-16F | FCY870U2FLTB | S0504010(0) |
| 2606512320 | 71151272-71001 | 91104-10100F | FCY-870U2LT | S0505009 |
| 2606512322 | 71161112-58000 | 91104-10300 | FCY-870UFLT | S0505010 |
| 2606512610 | 71161112-71000 | 91104-11050N | FCY-870UFLT-1 | S0505013(2) |
| 2606512760 | 71161212-58000 | 91104-30050 | FCY-870ULFT | S0505015 |
| 2606512770 | 71161212-71000 | 91104-31050 | FCY-870ULT | S0505016 |
| 2614510070 | 71161412-58000 | 91104-31050N | FCY-885I2LT | S0505025 |
| 2614510100 | 71161412-71000 | 950DA3 | FCY885U2FLT | S0505025(7) |
| 2614510110 | 71161611-58000 | 9621111-21000S | FCY-885U2FLT | SA-75W-1 |
| 2614510160 | 71161611-71000 | 9621121-21250 | FCY-885U2LFT | SL-411U2T |
| 2614510170 | 71161-71002 | 9621121-21500 | FCY-885U2LT | SL-415U1 |
| 2614510180 | 71161-75002 | 9621122-21000K | FCY-885U32LT | SL-415U2T |
| 2614510240 | 71162-71002 | 9621122-21000-K | FCY-885U3FLT | SL-418U2T |
| 2614510280 | 71162-75002 | 9621122-21500 | FCY-885UL2FT | SL-421U2T |
| 2614510410 | 711632E1-58000 | BCY-1085U4FLT | FCY-88SU2LT | SL-421U2T-16K |
| 2614510530 | 711632E1-58002 | BCY-1085U4FT | FP0495-1 | SL-526U2 |
| 2614510600 | 711632E1-71000 | BCY-1085UL4FT | FP0495-1(5) | SL-526U2FT |
| 2614510620 | 711632E1-71002 | BCY-416F | FP0496-1 | SL-526W1T |
| 1100DA3 | 711721-71002 | BCY-416T | FP0496-1(5) | SL-526W2 |
| 220DA3 | 71172-71000 | BCY-416T-1 | FP0502-01 | SL-542U1T-1 |
| 270DA3 | 71172-71002 | BCY-416T-16K | FP0502-1 | SL-542U2F |
| 2Z00016494 | 71172-75002 | BCY-416T-2 | FP0502-1(4) | SL-542U2F-1 |
| 2Z00016502 | 711731-71000 | BCY-416T-3 | FP0503-01 | SL-542U2F-1 |
| 330DA3 | 71173-75000 | BCY-416T-4 | FP0503-1 | SL-542U2F-16K |
| 550DA3 | 71181-71000 | BCY-860F | FP0503-1(4) | SL-542U2FT-16K |
| 70223-71000 | 71181-72000 | BCY-865T B | FP0527-1 | SL-542U2T |
| 70510-72000 | 71181-75000 | BCY-870FLT | FPO503-1(4) | SL-542U2T-1 |
| 71101-71000-1 | 711823E1-58000 | BCY-870T | HP0749-1MT | SL-542U2T-16K |
| 71101-71000-2 | 711823E1-71000 | BCY-870U2FLT | HP0749-3MT | SL-543U2T |
| 71101-75000-1 | 71182-71000 | BCY-870U2FT | HP0749-6MT | SO502014-50 |
| 71101-75000-2 | 71182-75000F | BCY-870UFLT | HP0763-6MT | SO502015 |
| 252524-7 | SO505012 |
