Air Compressor Cooler

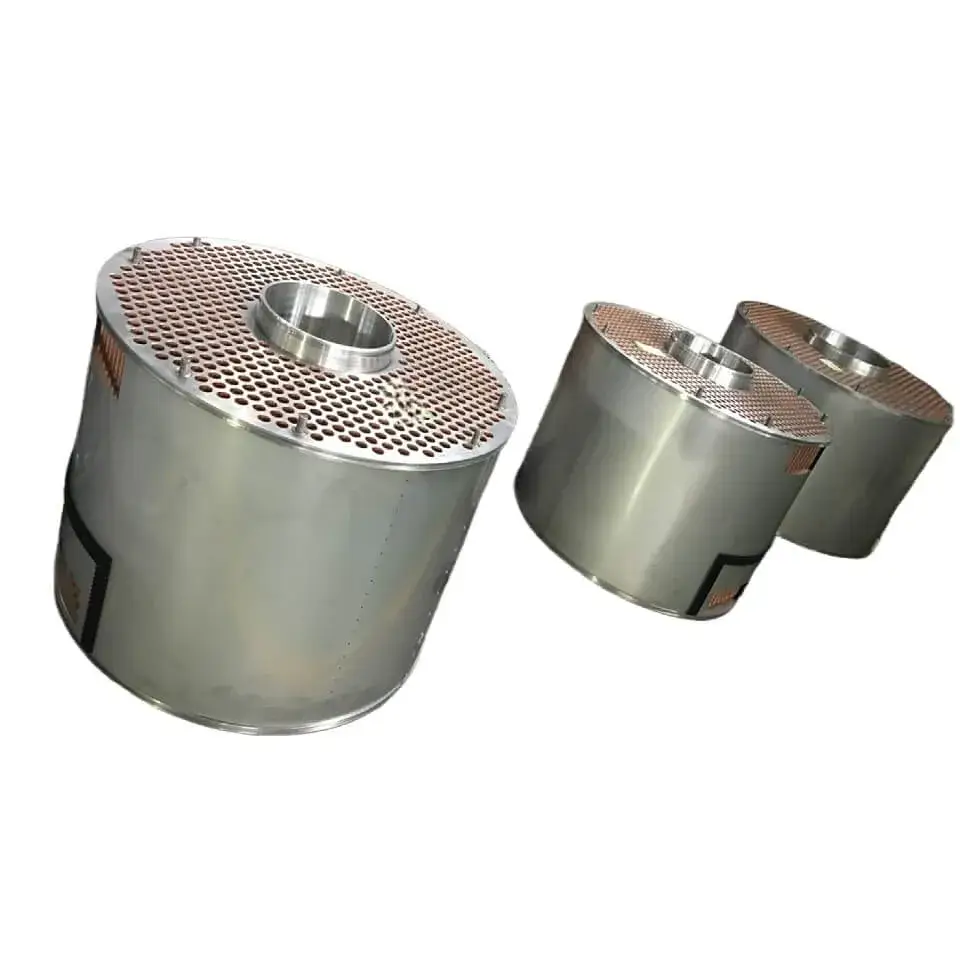

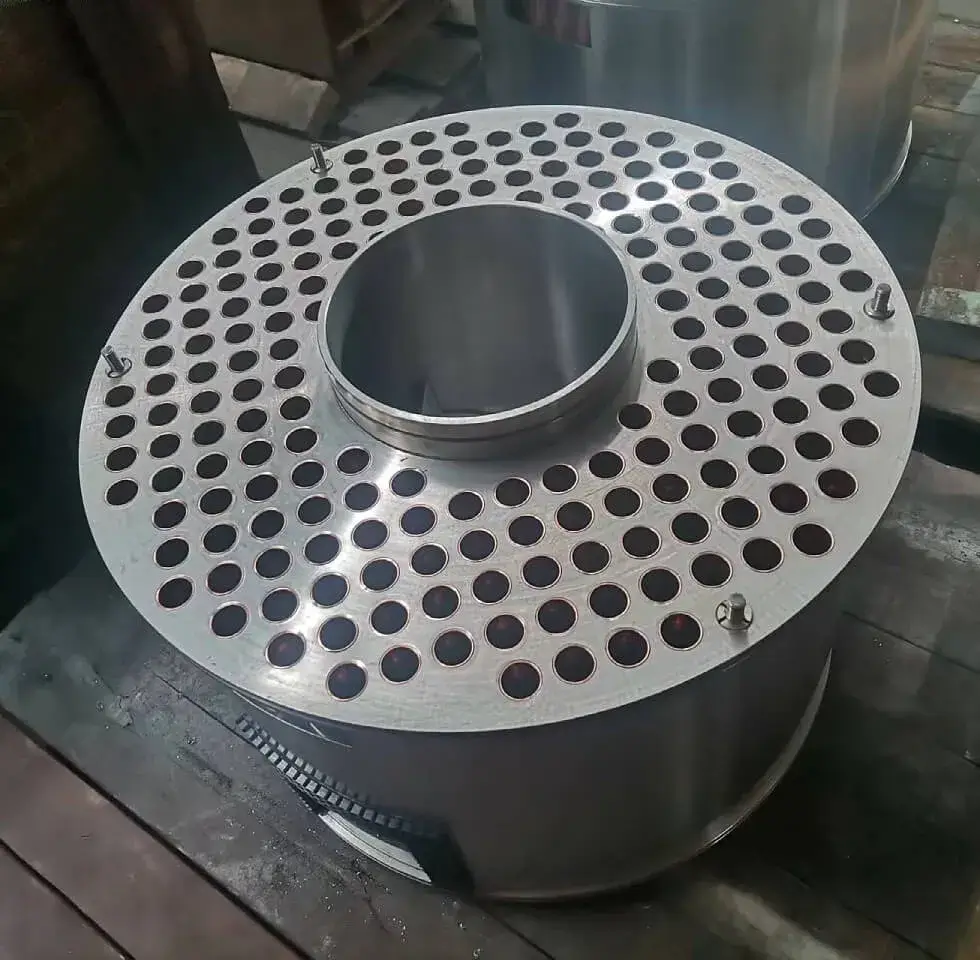

Ingersoll Rand Cooler
Main Parameters
We offer a diverse range of compressor coolers specifically designed for Ingersoll Rand equipment. Our product catalog includes the following models:
22259857 Intercooler (Copper)
22272348 Intercooler (Stainless Steel)
22259865 Aftercooler (Copper)
22272330 Aftercooler (Stainless Steel)
39796677 Oil Cooler
Ingersoll Rand Cooler
Ingersoll-Rand, founded in 1871 and headquartered in Woodcliff Lake, New Jersey, USA, is a global manufacturer of industrial equipment. The company produces compressed air systems, building hardware, construction equipment, golf cars, tools, and transport refrigeration systems, with over 40 factories in nearly 20 countries and approximately 35,000 employees.
The CENTAC unit is fully assembled, motor-driven, single-layer, single-stage suction and discharge, providing 100% oil-free air. Flow ranges from 25-850 m3/min, with discharge pressure from 0.8-4.0 MPa. The compressor and motor are connected via flange and coupling, with cooling, control, lubrication, and auxiliary systems mounted on a common base.
Industrial Background
Global industrial compressor and equipment manufacturer with broad installed base.
CENTAC Oil-Free Air
Single-stage suction/discharge package delivering 100% oil-free compressed air.
Integrated Package
Cooling, control, lubrication and auxiliaries integrated on one base frame.
Air Compressor Cooler
The compression process in an air compressor generates heat as a byproduct. To ensure optimal performance and prevent damage, it is essential to remove this heat before further compression or use. This requires the inclusion of a pre-cooler, intercooler, and aftercooler in the air compressor system.
Cooler Function in Compression Stages
1
Intercooler
Most industrial air compressors use a multi-stage design. During compression, heat generation causes air expansion, increasing horsepower demand in subsequent stages. The intercooler provides cooler, drier and denser air for the next stage.
2
Aftercooler
Following the intercooler, the aftercooler removes heat from compressed air using ambient air or cooling water. This lowers outlet temperature and removes moisture to improve compressed air quality.
3
Oil Cooler
The engine oil cooler allows the cooling system to dissipate excess oil heat. A water-to-oil heat exchanger is commonly used, with coolant outside tubes and oil through tubes for efficient heat transfer.
Available Ingersoll Rand Cooler models for:
| CENTAC I | CENTAC II | CENTAC III |
| 0C1 | CV0 | 2CII |
| 1C1 | CVI2A | CII |
| 2C1 | CVIA | 3ACII |
| 3C1 | CV2A | 5ACII |
| 4C1 | 1CII | 2ACII |
| Materials information: | Cooper Tubes Cooper/Aluminum Fins Stainless steel cover plate |
Ingersoll Rand Air Compressor Cooler Part Number
| CENTAC I Frame | |
|---|---|
| 0C1 Stages 1-3, 7X12626 / 8X1148 / 22420186 / 8X486 / 67889261 / 22420186 / C1737 | |
| 1C1 Stages 1-4, 7X2622 / 8X1122 / 8X520 / 67885681 / 42917476 / 42917476 / 22420202 / C1764 | |
| 2C1 Stages 1-4, 7X12624 / 8X1174 / 22245633 / 67889303 / 8X10986 / 8X538 / C1736 | |
| 3C1 Stages 1-4, 7X12726 / 8X5070 / 22205520 / 8X1339 / 67895441 / 2322632 / C1686 | |
| 4C1 C110 / C125 Stages 1-4, 7X12728 / 67895524 / 8X1341 / 8X542 /23996267 / 22377006 / C1759 | |
| 4C1 C150 Stages 1-4, 7X12730/1.500.295-12 / 8X1403 / 8X298 / 67896894 / 8X1520 / C1778 | |
| CENTAC II Frame | |
| CV0 / 0CV Stage-1 7X12151 / 67814145 /22460620 / 141127 /C1746 | |
| CV0 / 0CV Stage-2 7X12251 / 67814806 / 22463475 / 141101/ C1747 | |
| CV1 / 1CV / CV1B / 1BCV Stage-1 7X14691 / 7X12982 / 8X11439 / 22444301 / 22480016 / 68132844 / Z17103 | |
| CV1 / 1CV / CV1B / 1BCV Stage-2 7X14694 / 7X12929 / 8X11440 / 22429690 / 22459937 / 22480255 / 68132703 / 23976434 / 20029895Z17102 | |
| CV1A / 1ACV Stage-1 7X13019 / 7X11956 22429690 / 67949537 / 000978940 / C1664 | |
| CV1A / 1ACV Stage-2 7X13005 / 7X11957 / 7X2939 / 22420002 / 67949529 / 000978957 / 4.506.290 / 43118702 / C1665 | |
| 1CII Stage-1 7X12775 / 7X2445 / 67897389 / C1632 | |
| 1CII Stage-2 7X12792 / 7X2389 / 67906453 / C1633 | |
| 2CII Stage-1 7X12818 / 7X2444 / C1756 / C1756 | |
| 2CII Stage-2 7X12775 / 7X2445 / 67897389 / C1632 | |
| CV2 / 2CV / C700 Stage-1 7X11845 / 7X14889 / 68149954 / 232218126 / 67767632 / C1748 | |
| CV2 / 2CV / C700 Stage-2 7X11846 / 7X14902 / 68149921 / 23969462 / 23218164 / 2221880 / 67767624 / C1749 | |
| CV2 / 2CV / C700 Stage-3 7X11847 / 7X14905 / 68149897 / 8X10632 / 23937261 / 23218142 / 68149897 / C1750 | |
| 2ACII / C950 Stage-1 7X12113 / 7X14883 (SS Heads, Tube & Shroud) / 68150010 / 8X10632 / 23866387 / 68165513 / 7X14948 / 67791947 / C1752 | |
| 2ACII / C950 Stage-1 (SPECIAL OVER 1250HP) 68150010 | |
| 2ACII / C950 Stage-2 7X12114 / 7X14886 (SS Heads, Tube & Shroud) / 68149988 / 7X13220 / 68165505 / 67791954 / C1753 | |
| 2ACII / C950 Stage-3 7X15035 / 68183144 | |
| 3ACII / 3CII Stage-1 (Old Style-Long & Narrow O.D. Center Tube Size Dia. 8.858'') 7X14236 / 8X4705 | |
| 3ACII / 3CII Stage-1 (STD New Style-Short & Larger O.D. Center Tube Size Dia. 11.750'') 7X12811 / 8X10764 / 8X2979 / 22212144 / 7X15260 / 8X101521 / 67906511 / 22212144 / 94528478 / C1705 | |
| 3ACII / 3CII Stage-2 7X12834 / 8X2395 / 22218093 / 7X15261 / 67909572 / 8X3545 / 22218093 / C1706 | |
| 3ACII / 3CII Stage-3 7X12836 / 8X2396 / 7X15262 / 22222269 / 8X3546 / 67909465 / 8X10153 / C1707 | |
| 5CII Stage-1 7X12858 / 7X4298 / 7X15408 / 94975406 / 68214576 / Z1780 | |
| 5CII Stage-2 7X12860 / 7X4141 / 7X15413 / 94975463 / 68214519 / Z1781 | |
| 5CII Stage-3 7X12862 / 7X15418 / 8X4607 / 94973914 / Z1782 |
Share Article
| Brand Name: | Fete Vessel | Design Standard: | ASME, PED, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 3 years | Production standard: | GB150.ASME.European standard. |
What are your strengths?
Ans. Our strengths lie in our expertise in design and manufacturing.
What is your estimated delivery time?
Ans. The delivery time varies depending on the specific product. Typically, it ranges from 10 to 40 working days.
What are your primary product offerings?
Ans. Our primary product offerings include industrial heat exchangers, pressure vessel, air dryer.
How can I get in touch with you?
Ans. We are available 24/7 through TradeManager for immediate assistance. Alternatively, you can contact us via email, WhatsApp, Skype, or WeChat. Select one of our products and message us, and we will promptly respond.
What are your payment terms?
Ans. Our payment terms require a 50% TT deposit in advance, with the remaining 50% TT balance due before delivery. We also offer the option of utilizing Alibaba Trade Assurance Service. We welcome any additional suggestions or inquiries regarding payment methods.
Feel free to Ask questions
Replacement support
Ingersoll Rand Cooler selection and replacement support
Fete Vessel supports engineers and purchasing teams who need a reliable replacement for Ingersoll Rand Cooler. Share the compressor model, cooler dimensions, drawings, operating pressure, temperature, medium, and old part photos, and our team will compare the details before recommending a suitable manufacturing plan.
Fit and drawings
We review cooler dimensions, nozzle position, mounting size, drawings, old part photos, and site installation details.
Material and test
Each order can be checked for material, tube bundle layout, pressure test requirements, coating, packing, and delivery schedule.
Repair or replace
For urgent maintenance projects, we can help check whether an existing cooler can be repaired, retubed, or replaced.
