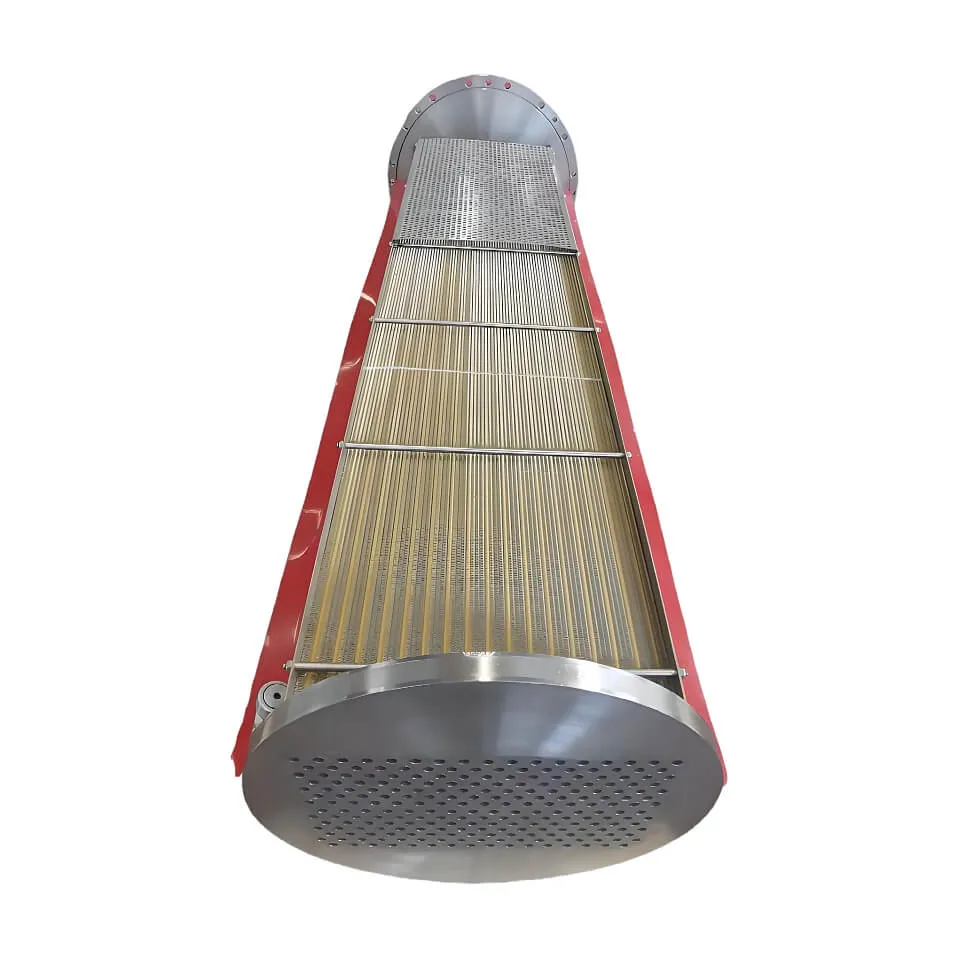

Samsung Compressor Cooler SME5000

Product Overview

The Samsung Compressor Cooler SME5000 is a high-performance cooling system solution designed by Samsung Electronics' Industrial Equipment Division specifically for commercial and industrial compressors. Its core function is to optimize compressor operating temperature through efficient heat exchange technology, thereby improving equipment stability and energy efficiency.

Featuring modular design as its core, it integrates Samsung's proprietary variable frequency control algorithm and third-generation DuraFin+ heat exchange coating technology. Compatible with Samsung's full range of Rotary Compressors (including R22, R410A, and R134a refrigerant models) and some Scroll Compressor models, it covers industrial applications with cooling capacity requirements from 10kW to 50kW.

The product adopts a dual-channel counter-flow heat exchange structure with built-in intelligent temperature sensor arrays that monitor compressor housing temperature, refrigerant pressure, and ambient humidity data in real-time, dynamically adjusting cooling efficiency through AI algorithms. Compared to traditional air-cooled chillers, the SME5000 can reduce compressor operating temperature by 12%-18% under the same conditions while decreasing refrigerant loss by 35%.

Its compact design (dimensions: 890×620×310mm) allows flexible integration into standard 19-inch cabinets or standalone installation in industrial equipment rooms, meeting stringent temperature control requirements for data centers, precision manufacturing, and cold chain logistics applications.

Technical Features and Data Specifications

Core Heat Exchange Technology

1. DuraFin+ Third-Generation Heat Exchange Coating

• Nano-level hydrophilic aluminum foil composite structure with surface roughness increased to Ra0.8μm, providing 30% more heat exchange area than traditional coatings.
• Certified through 480-hour salt spray tests with 4x improved corrosion resistance, maintaining 92% of initial heat exchange efficiency even in harsh environments with 85% humidity and 5% salt concentration.
• Optimized coating thickness of 0.12mm balances thermal conductivity and structural strength, reducing thermal resistance to 0.0035㎡·K/W.

2. Dual-Channel Counter-Flow Structure Design

• Cross-flow layout between refrigerant channels and air channels with refrigerant velocity controlled between 1.2-1.8m/s and air velocity between 3.5-4.5m/s, ensuring stable logarithmic mean temperature difference (LMTD) of 8-12℃.
• Spiral turbulators installed on channel walls increase turbulence intensity to 0.8, improving heat transfer coefficient by 25% compared to straight channels.

Intelligent Temperature Control System

1. Multi-Sensor Fusion Algorithm

• Integrates 6 PT1000 platinum resistance temperature sensors (±0.1℃ accuracy), 2 diffusion silicon pressure sensors (±0.25%FS accuracy), and 1 capacitive humidity sensor (±2%RH accuracy) with sampling frequency up to 100Hz.
• Kalman filter algorithm fuses multi-source data to achieve compressor housing temperature prediction error <0.5℃.

2. Dynamic Frequency Conversion Control

• Equipped with Samsung Digital Inverter 8th generation frequency converter supporting 0.1Hz step adjustment with output frequency range of 10-120Hz.
• Dynamically adjusts fan speed (300-2800rpm) based on load demand, reducing energy consumption by 60% under partial load conditions (<40% load).

Efficiency and Reliability Metrics

Parameter	Specification	Test Standard
Maximum Heat Exchange Capacity	52kW (ΔT=15℃)	GB/T 18430.1-2021
Refrigerant Side Pressure Drop	≤12kPa (flow rate 12m³/h)	ISO 15848-1:2015
Air Side Resistance	≤45Pa (air velocity 4m/s)	ASHRAE 52.2-2017
Noise Level	58dB(A) (full load operation)	IEC 60704-2-14:2013
MTBF (Mean Time Between Failures)	≥120,000 hours (40℃ environment)	MIL-HDBK-217F Notice 2
IP Protection Rating	IP54 (dust and water resistant)	IEC 60529:2013

Application Scenarios and Case Studies

Typical Application Scenarios

1. Data Center Precision Air Conditioning Systems

• Works with Samsung DVM S-series VRF systems to provide constant temperature and humidity environment for server racks (temperature fluctuation ≤±0.5℃, humidity fluctuation ≤±3%RH).
• In a South China data center project for a leading cloud provider, SME5000 deployment reduced single compressor energy consumption by 18%, improving annual PUE from 1.42 to 1.35.

2. Semiconductor Manufacturing Clean Rooms

• For temperature-sensitive equipment like lithography machines, cascading two SME5000 units achieves wide temperature range control from -10℃ to 40℃.
• Application at a 12-inch wafer fab showed cooling system response time reduced to 15 seconds with temperature overshoot <0.3℃, improving yield by 0.7%.

3. Cold Chain Logistics Warehousing Centers

• Combined with Samsung R410A refrigerant compressors, achieves 12-hour full-load operation without frost formation in -25℃ quick-freeze warehouses.
• Field tests at an East China hub warehouse for a fresh food e-commerce company showed 22% reduction in daily energy consumption per storage area and product loss rate decreased from 0.8% to 0.3%.

Detailed Case Analysis

Case: Vaccine Cold Storage Renovation Project for a Multinational Pharmaceutical Company in Singapore

• Challenge: Original air-cooled chillers frequently experienced refrigerant leakage in tropical climate, causing vaccine potency loss.
• Solution: Deployed SME5000 with Samsung R134a eco-friendly refrigerant compressors in dual-unit hot-standby redundancy configuration.
• Results:
  • Cold storage temperature stability improved from ±2℃ to ±0.8℃
  • Annual refrigerant replenishment reduced by 85%
  • Maintenance costs lowered by 60% (manual inspection frequency reduced from 3 times weekly to once monthly)

Maintenance Strategy

Routine Inspection Protocol

1. Sensor Calibration

• Quarterly comparison testing of temperature sensors using standard sources; replace if error exceeds ±0.3℃.
• Biannual zero drift detection for pressure sensors with allowable deviation range of ±0.5%FS.

2. Heat Exchanger Cleaning

• Monthly high-pressure air (0.6MPa) cleaning of fin gaps; annual chemical cleaning using specialized detergent (pH 7-8).
• Post-cleaning airflow test required; replace filter if airflow reduction exceeds 15%.

Fault Diagnosis Process

1. Temperature Alarm

• If compressor housing temperature consistently exceeds 85℃, check:
  • Refrigerant charge level (standard value ±5%)
  • Fan bearing lubrication status (replace grease every 5,000 hours)
  • Inverter IGBT module temperature (normal value <80℃)

2. Pressure Alarm

• When refrigerant side pressure exceeds 3.2MPa:
  • Check expansion valve opening (normal range 40-60%)
  • Measure dryer filter pressure difference (standard value <0.05MPa)

Spare Parts Management Recommendations

Part Type	Replacement Cycle	Storage Conditions
Inverter Electrolytic Capacitor	8 years	Temperature <35℃, humidity <60%RH
Sealing Ring (EPDM Material)	3 years	Store away from light and ozone environments
Fan Motor Carbon Brush	2 years	Relative humidity <40%

Conclusion

The Samsung Compressor Cooler SME5000 redefines the performance boundaries of industrial compressor cooling systems through deep integration of materials science, fluid dynamics, and intelligent control technologies. Its third-generation DuraFin+ coating technology extends corrosion-resistant lifespan to 4 times that of conventional solutions, while the multi-sensor fusion based dynamic frequency conversion control algorithm pushes the energy efficiency ratio (COP) beyond the industry benchmark of 4.2.

Field data from high-value applications in semiconductor, pharmaceutical, and cold chain sectors demonstrate that this product can reduce total lifecycle operating costs by 15%-25% while lowering equipment downtime risk by over 60%.

For industrial users pursuing ultimate reliability and energy efficiency, the SME5000 is not merely a cooling device but a critical node in building smart factory infrastructure. Its modular design supports seamless integration with Samsung SmartThings IoT platform, enabling future OTA upgrades for predictive maintenance, carbon emission monitoring, and other value-added functions to continuously meet Industry 4.0 transformation needs.

Manufactured and distributed by Fete Vessel - your trusted partner in industrial cooling solutions.
