Samsung Air Compressor Cooler
Samsung Compressor Cooler SM7000
Part Number List:
AFTERCOOLER ASSY (CU+NI TUBE, CU FIN) , 1722100001-G01
#1 INTERCOOLER ASSY , 1721100001-G01
#2 INTERCOOLER ASSY , 1721200001-G01
AFTERCOOLER ASSY (CU+NI TUBE, AL FIN) , 1722100001-G02
#1 INTERCOOLER ASSY , 1721100001-G02
#2 INTERCOOLER ASSY , 1721200001-G02

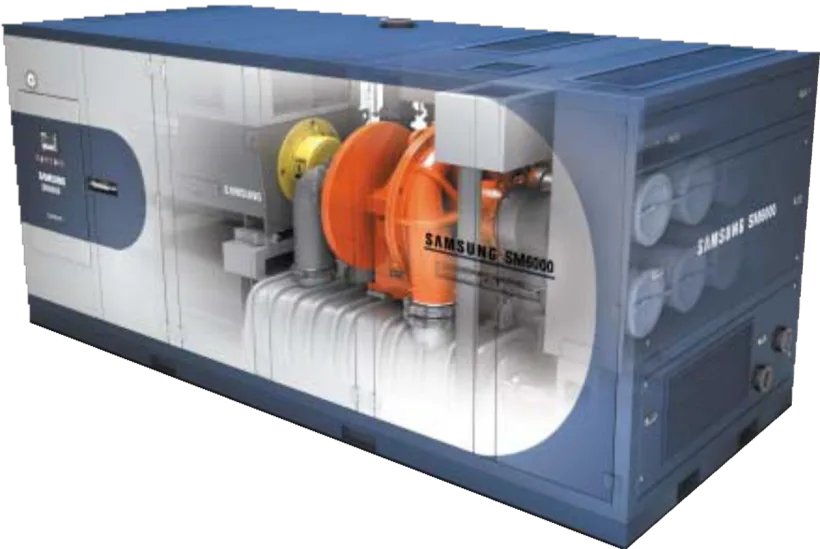

Samsung Hanwha Compressor Cooler SM7000 Overview
The Samsung Compressor Cooler SM7000 is the largest model shown in the Samsung SM Series turbo compressor brochure. It is specified for high-capacity centrifugal compressor service, with a capacity range of 20,000 to 46,000 m3/hr and discharge pressure coverage from 3.5 to 25 barG. For replacement cooler projects, this page focuses on SM7000 intercooler, aftercooler, water-side cleaning, package access and operating data that affect cooler selection.
20,000 - 46,000 m3/hr
Largest SM Series capacity range for high-flow compressor cooler projects.
3.5 - 25 barG
Wide pressure range for SM7000 centrifugal compressor service conditions.
Cooler focused
Intercooler, aftercooler and cooling water data guide replacement selection.
40,000 kg package
Large-frame package requires drawing, envelope and lifting checks before production.
SM7000 Series focus
01
Largest SM model
SM7000 is the largest model in the referenced Samsung SM Series compressor brochure.
02
Cooler replacement
Focused for high-capacity SM7000 compressor cooler, intercooler and aftercooler projects.
03
Legacy service search
Relevant to Samsung, Samsung Techwin and Hanwha SM7000 cooler maintenance searches.
04
Custom selection
Cooler sizing can be matched from drawings, dimensions, materials and site conditions.
Cooler Related Design Highlights

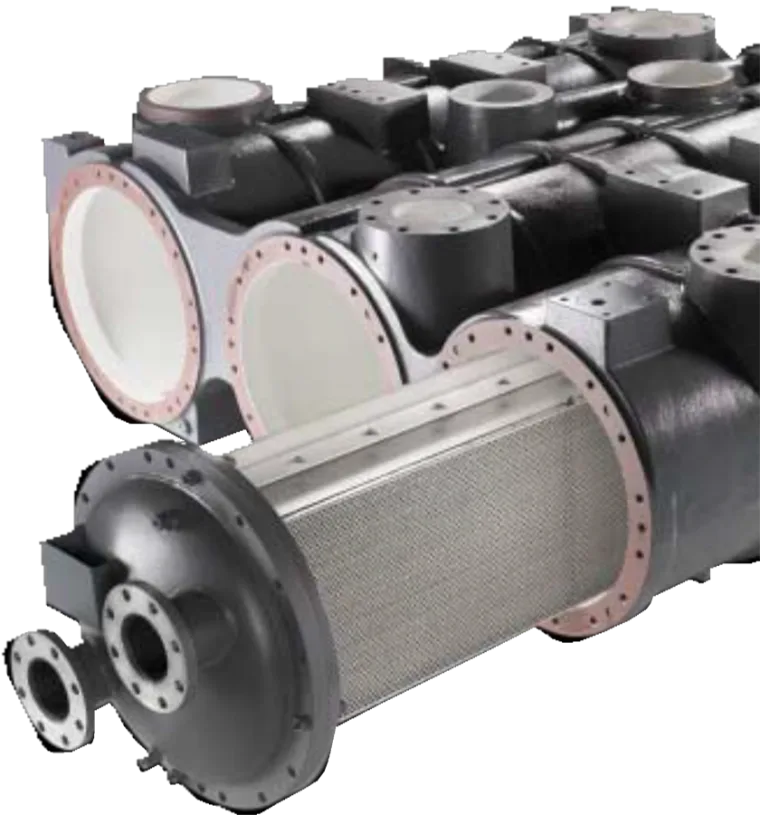

Serviceable cooler bundle
Mechanically cleanable tubes
Water-in-tube SM7000 cooler design supports practical tube-side cleaning during overhaul.
Low pressure drop cooling
Plate-finned tubes improve compressor cooler performance with controlled air-side loss.
Corrosion resistance
Bundle treatment helps extend intercooler and aftercooler service life in cooling water duty.
Inlet guide vane control
Demand matching
Inlet guide vane control matches compressor output to plant air demand.
Energy saving operation
Guide vanes reduce power consumption as compressed air output decreases.
Fewer load cycles
Wide turndown helps reduce loading and unloading cycles around the SM7000 package.
Performance, Controls and Maintenance
Maintenance access
Quick service structure
Horizontally split bearings, gearbox and seals support SM7000 service with minimal downtime.
Piping stays in place
Bearing and seal access is designed without disturbing air piping around the cooler section.
Modularized assemblies
Package modules help reduce maintenance and repair time for legacy SM7000 compressors.
Package and controls
PLC monitoring
Controls monitor temperatures, pressures, vibration levels and motor operating data.
Simple connections
Water-in, water-out and compressed air discharge connections simplify cooler installation.
Open enclosure panels
Full access panels support inspection of the compressor, motor and cooler sections.
Integrated Package Includes
- 01Air inlet filterProtects the SM7000 compressor air path before compression.
- 02Inlet guide vanesControls intake flow for efficient part-load operation.
- 03After coolerKey cooler item for compressed air temperature reduction.
- 04SilencerSupports package noise control in compressor operation.
- 05Check valveHelps protect the compressor discharge line from backflow.
- 06Cooling water manifoldCoordinates water supply and return for cooler service.
- 07Main drive motorMotor data is required when checking SM7000 package duty.
- 08Blow-off valveWorks with package control during unloading and protection.
- 09ControllerMonitors pressure, temperature, vibration and motor data.
- 10Water drain trapsImportant for cooler condensate handling and maintenance.
SM7000 Specifications
| Description | SM2000 | SM3000 | SM4000 | SM5000 | SM6000 | SM7000 | |
|---|---|---|---|---|---|---|---|
| Capacity | m3/hr | 1,700 - 3,000 | 3,000 - 5,500 | 5,000 - 8,500 | 8,000 - 15,000 | 13,000 - 24,000 | 20,000 - 46,000 |
| CFM | 1,020 - 1,800 | 1,800 - 3,300 | 2,900 - 5,000 | 4,700 - 8,800 | 7,600 - 14,100 | 11,700 - 27,100 | |
| Motor | kW | 150 - 4,400 | |||||
| HP | 200 - 5,900 | ||||||
| Discharge Pressure | barG | 3.5 - 25 | |||||
| PsiG | 50 - 363 | ||||||
| Dimension (W x L x H) | mm | 1,500 x 2,550 x 1,900 | 2,100 x 4,350 x 2,100 | 2,100 x 4,650 x 2,220 | 2,150 x 5,200 x 2,100 | 2,300 x 5,800 x 2,550 | 5,500 x 8,000 x 4,500 |
| Weight | kg | 3,200 | 7,000 | 9,000 | 12,000 | 18,000 | 40,000 |
* Weight: excluding sound-proof enclosure, including electrical motor. Specifications are from the referenced Samsung SM Series brochure.
Product Range
For Samsung / Hanwha SM7000 cooler replacement, confirm the exact compressor model, original cooler drawing, water-side material requirement, tube cleaning access, cooling water quality, air flow, discharge pressure and available installation envelope before production. Fete Vessel can support customized SM7000 intercooler and aftercooler replacement for legacy Samsung Techwin and Hanwha-related compressor service projects.
Share Article
| Brand Name: | Fete Vessel | Design Standard: | ASME, PED, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 3 years | Production standard: | GB150.ASME.European standard. |
What are your strengths?
Ans. Our strengths lie in our expertise in design and manufacturing.
What is your estimated delivery time?
Ans. The delivery time varies depending on the specific product. Typically, it ranges from 10 to 40 working days.
What are your primary product offerings?
Ans. Our primary product offerings include industrial heat exchangers, pressure vessel, air dryer.
How can I get in touch with you?
Ans. We are available 24/7 through TradeManager for immediate assistance. Alternatively, you can contact us via email, WhatsApp, Skype, or WeChat. Select one of our products and message us, and we will promptly respond.
What are your payment terms?
Ans. Our payment terms require a 50% TT deposit in advance, with the remaining 50% TT balance due before delivery. We also offer the option of utilizing Alibaba Trade Assurance Service. We welcome any additional suggestions or inquiries regarding payment methods.
Feel free to Ask questions
Replacement support
Samsung Compressor Cooler SM7000 selection and replacement support
Fete Vessel supports engineers and purchasing teams who need a reliable replacement for Samsung Compressor Cooler SM7000. Share the compressor model, cooler dimensions, drawings, operating pressure, temperature, medium, and old part photos, and our team will compare the details before recommending a suitable manufacturing plan.
Fit and drawings
We review cooler dimensions, nozzle position, mounting size, drawings, old part photos, and site installation details.
Material and test
Each order can be checked for material, tube bundle layout, pressure test requirements, coating, packing, and delivery schedule.
Repair or replace
For urgent maintenance projects, we can help check whether an existing cooler can be repaired, retubed, or replaced.
