Samsung Air Compressor Cooler
Samsung Compressor Cooler SM5000
Part Number List:
#1 intercooler -part number HP16-000302A
#2 intercooler -part number HP16-000303A
#3 aftercooler -part number HP16-000304A
#1 intercooler -part number HP16-000288A
#2 intercooler -part number HP16-000289A
#3 aftercooler -part number HP16-000290A
Samsung Compressor Cooler SM5000 Overview
The Samsung Compressor Cooler SM5000 is part of the SM Series compressor cooling package. The SME Series design is based on proven SM Series technology and operating experience, combining the essential cooler, lubrication and package components in a compact arrangement with the same practical performance focus as the SM Series.
7,500 - 13,000 m³/hr
SM5000 flow range for compact SM Series compressor cooling packages.
3.5 - 18 Bar A
Discharge pressure coverage for SM Series replacement cooler planning.
Compact layout
Integrated oil system and separated aftercooler support flexible installation.
20 ft container
Compact package concept helps reduce transport and site handling effort.
Benefits from compactness
01
Integrated lubrication
Cooler and oil tank layout improves maintainability and makes oil drainage easier.
02
Flexible aftercooler
Separated aftercooler arrangement helps adapt the SM5000 to different rooms.
03
Transport friendly
Compact package can fit into a 20 ft standard container for lower-cost transport.
04
Cooler access
Service points stay visible around the cooler case, air path and oil system.
Integrated lubrication system makes better use of your work place.
Compact Package Layout

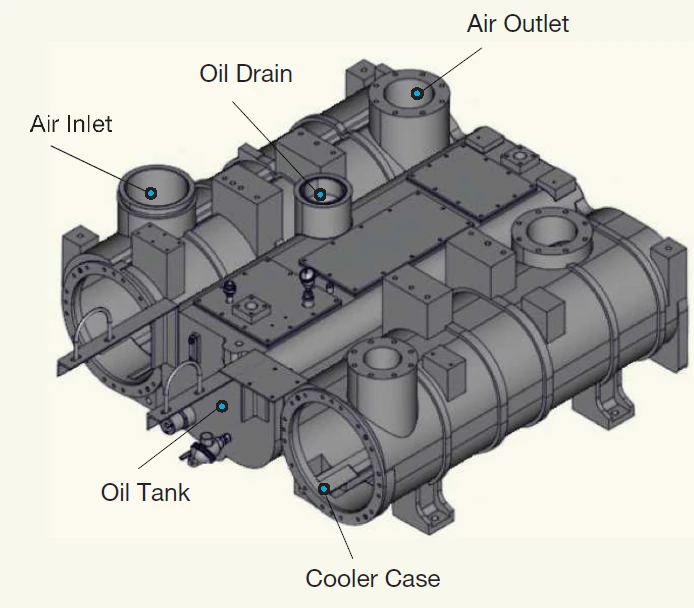

The package layout keeps the cooler case, air inlet, air outlet, oil drain and oil tank clearly serviceable while reducing the footprint required for installation. This structure supports easier maintenance access and a more flexible aftercooler arrangement for different compressor room layouts.
Scope of Supply and Control Package
Scope of Supply
- 01Air intake filter
- 02Inlet guide vanes
- 03Blow off valve and silencer
- 04Check valve and expansion joint
- 05Complete lubrication system
- 06Aftercooler and drain traps
- 07Main motor
- 08PLC control system
- 09Base frame
- 10Cooling water manifold
Optional items
Sound enclosure, dual oil filter, block valve, companion flange, hot air piping, auto trap and MODBUS/PROFIBUS interface.
Complete Control Package
Touch Plus M
Real-time monitoring by PC and smartphone, with alarm and troubleshooting messages.
Touch Plus R1 / R2
Remote monitoring and remote control options for compressor management.
Touch Plus R3
Adds load sharing control for energy saving in multi-compressor systems.
The SM5000 cooler package can be arranged with control, monitoring and auxiliary components according to the compressor application. This helps simplify installation planning while keeping the main service points accessible for routine inspection.
SM5000 Specification
| Parameter | Unit | SM2000 | SM3000 | SM4000 | SM5000 | SM6000 |
|---|---|---|---|---|---|---|
| Flow Rate | m³/hr | 1,200~2,250 | 3,300~5,300 | 4,800~8,400 | 7,500~13,000 | 13,000~21,000 |
| CFM | 800~1,450 | 1,950~3,100 | 2,830~5,000 | 4,800~8,800 | 7,650~12,100 | |
| Power | kW | 130~255 | 210~680 | 310~1,010 | 490~1,540 | 780~2,350 |
| HP | 175~345 | 282~913 | 410~1,350 | 660~1,800 | 1,050~3,150 | |
| Discharge Pressure | Bar A | 6.5~10 | 3.5~18 | |||
| Psi A | 95~145 | 50~265 | ||||
| Dimension (L×W×H) | mm | 2,550×1,500×1,900 | 4,350×2,100×2,100 | 4,650×2,190×2,215 | 5,200×2,150×2,350 | 5,800×2,300×2,550 |
| inch | 100×60×75 | 171×85×85 | 185×85×90 | 205×85×95 | 230×90×100 | |
| Weight | Kg | 4,500 | 9,300 | 12,400 | 14,100 | 18,000 |
For replacement cooler selection, confirm the compressor model, cooler drawing, connection size, operating pressure, flow rate and site layout before production. Fete Vessel can support customized cooler replacement based on existing unit dimensions and process requirements.
Share Article
| Brand Name: | Fete Vessel | Design Standard: | ASME, PED, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 3 years | Production standard: | GB150.ASME.European standard. |
What are your strengths?
Ans. Our strengths lie in our expertise in design and manufacturing.
What is your estimated delivery time?
Ans. The delivery time varies depending on the specific product. Typically, it ranges from 10 to 40 working days.
What are your primary product offerings?
Ans. Our primary product offerings include industrial heat exchangers, pressure vessel, air dryer.
How can I get in touch with you?
Ans. We are available 24/7 through TradeManager for immediate assistance. Alternatively, you can contact us via email, WhatsApp, Skype, or WeChat. Select one of our products and message us, and we will promptly respond.
What are your payment terms?
Ans. Our payment terms require a 50% TT deposit in advance, with the remaining 50% TT balance due before delivery. We also offer the option of utilizing Alibaba Trade Assurance Service. We welcome any additional suggestions or inquiries regarding payment methods.
Feel free to Ask questions
Replacement support
Samsung Compressor Cooler SM5000 selection and replacement support
Fete Vessel supports engineers and purchasing teams who need a reliable replacement for Samsung Compressor Cooler SM5000. Share the compressor model, cooler dimensions, drawings, operating pressure, temperature, medium, and old part photos, and our team will compare the details before recommending a suitable manufacturing plan.
Fit and drawings
We review cooler dimensions, nozzle position, mounting size, drawings, old part photos, and site installation details.
Material and test
Each order can be checked for material, tube bundle layout, pressure test requirements, coating, packing, and delivery schedule.
Repair or replace
For urgent maintenance projects, we can help check whether an existing cooler can be repaired, retubed, or replaced.
