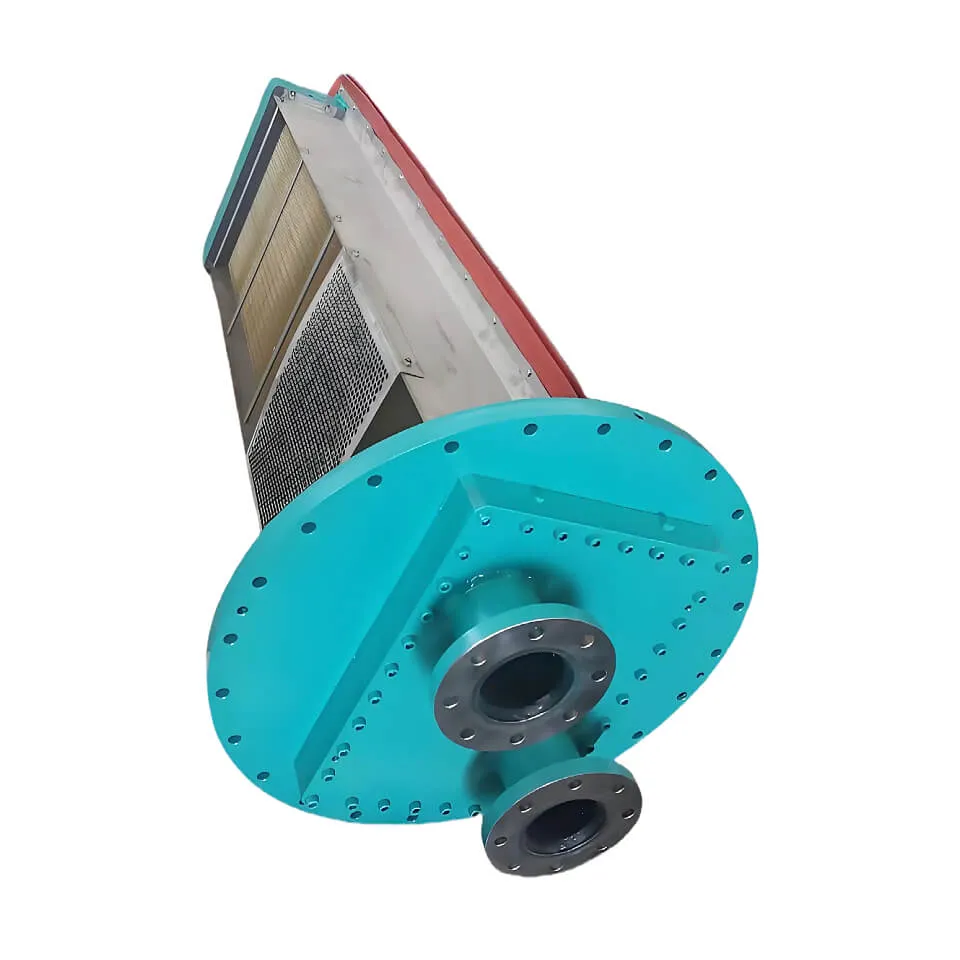

Samsung Compressor Cooler SM3000

Product Overview: The Benchmark in Industrial Cooling Technology

The Samsung Compressor Cooler SM3000, developed by Samsung Electronics' Industrial Solutions Division, represents the cutting edge of centrifugal air compressor cooling technology. Derived from aircraft engine technology, this premium cooling system features three-stage centrifugal compression and intelligent inverter control architecture, specifically designed for high-load, continuous industrial operations.

At its core, the SM3000 transforms Samsung's precision environmental control expertise from semiconductor manufacturing and data center applications into energy optimization solutions for compressor systems. Its technical architecture features a fully enclosed stainless steel housing with dual-helical flow channels and Samsung's proprietary TurboCompressor centrifugal impeller, achieving breakthroughs in both compression ratio and energy efficiency.

The heat exchange module incorporates Samsung's patented 3D CFD-optimized fin structure, delivering 37% higher heat transfer efficiency than conventional coolers of comparable size. The product holds multiple international certifications including UL, CE, and ISO 14001, and achieves A+++ rating in the EU energy efficiency labeling system.

Technical Specifications and Performance Data

Core Performance Parameters

Specification	Technical Parameter
Cooling Capacity Range	120-380kW (for compressor discharge of 30-90m³/min)
Energy Efficiency Ratio (COP)	Peak 4.2 (under international standard conditions)
Sensible Heat Ratio (SHR)	≥92% (industry baseline: 85%)
Compression Ratio	5.8:1 (adjustable range 3.2-7.5:1)
Coolant Medium	R134a/R513A (eco-friendly options available)
Noise Level	≤72dB(A) (measured at 1 meter distance)
Operating Temperature Range	-40℃~+60℃ (extreme condition mode)
Maintenance Interval	20,000 hours for core components

Key Technological Innovations

Dual-Frequency Inverter Control System

Incorporating Samsung's Digital Inverter dual-core frequency conversion technology, the system enables stepless compressor speed adjustment between 1,200-4,800rpm. By monitoring real-time compressor discharge temperature, pressure, and ambient humidity, it dynamically adjusts cooling power output, achieving 28%-35% energy savings compared to conventional fixed-speed equipment. In one documented case, a petrochemical plant reduced annual compressor station electricity consumption from 12.8 million kWh to 9.1 million kWh after deployment.

Nano-Coated Heat Exchanger

The condenser fins feature Samsung's proprietary HydroGuard nano-hydrophobic coating with a 165° contact angle, improving condensate droplet formation rate by 40%. Testing at 95% relative humidity shows 73% less thermal resistance increase compared to standard aluminum fins, ensuring sustained high-efficiency operation in hot/humid environments.

Smart Predictive Maintenance System

Integrated with Samsung's SmartThings IoT platform, the system collects real-time operational data through vibration sensors, temperature probes, and pressure transmitters. Machine learning algorithms analyze historical failure cases to provide 14-day advance warnings for potential issues like bearing wear or refrigerant leaks, reducing unplanned downtime by over 65%.

Application Scenarios and Case Studies

Primary Application Fields

Semiconductor Manufacturing

At Samsung Electronics' Pyeongtaek wafer fabrication facility, SM3000 units provide precise temperature control (±0.5℃) for dry vacuum pumps, maintaining chamber vacuum at 10⁻⁶ Torr levels. The low-vibration design (≤0.05mm/s) prevents interference with nanoscale lithography equipment.

Data Centers

SM3000 water-cooled units deployed at AWS Singapore data center, combined with Free Cooling technology, achieved PUE reduction from 1.58 to 1.29 despite 82% average humidity. Dual-circuit redundancy design ensures 365-day fault-free operation.

New Energy Manufacturing

At a CATL lithium battery factory, these coolers provide constant-temperature airflow (±1℃) for coating machine ovens, improving electrode drying efficiency by 18% while reducing energy consumption by 22%. The explosion-proof design (Ex d IIB T4) meets lithium battery production safety standards.

Detailed Case Analysis

Case 1: Automotive Stamping Plant

Challenge: Existing cooling system couldn't handle instantaneous thermal load from 2,000-ton presses, causing ±8℃ mold temperature fluctuations and 89% product yield.

Solution: Deployed SM3000 air-cooled units with AI-powered temperature control system dynamically adjusting cooling water flow.

Results: Mold temperature variation reduced to ±1.2℃, yield improved to 99.2%, with annual mold replacement savings of ¥1.2 million.

Case 2: Chemical Group Air Separation Unit

Challenge: Existing cooler suffered 120 annual maintenance hours due to ice-clogged condensate lines.

Solution: Implemented SM3000 low-temperature model (-40℃~+50℃) with electric heating tape solution.

Results: Achieved 8,760 continuous operation hours without failure, saving ¥850,000 annually while boosting nitrogen production efficiency by 15%.

Maintenance Strategy

Routine Maintenance Protocol

Refrigerant System Inspection

Monthly infrared leak detection at pipe connections, maintaining refrigerant pressure at 0.6-0.8MPa gauge pressure (R134a conditions). Pressure drops exceeding 10% require vacuum leak testing and refrigerant recharge.

Air Filter Maintenance

Quarterly removal of metal-frame filters for reverse air blowing at 0.4MPa. Replace filter elements (recommended Samsung OEM H13-grade) when differential pressure exceeds 250Pa.

Electrical System Check

Bi-annual thermal imaging scans of inverter modules (operating temperature ≤75℃). When IGBT module temperature variation exceeds 5℃, reapply thermal grease and tighten mounting bolts.

Comprehensive Maintenance Guide

Annual Overhaul Requirements

• Centrifugal impeller dynamic balance inspection (tolerance ≤0.5g·mm)
• Bearing grease replacement (Samsung EP2 extreme-pressure grease)
• Pressure sensor and temperature probe calibration (±0.5% accuracy)

10-Year Replacement Criteria

Core component replacement required at 80,000 operational hours or when any condition occurs:

• Condenser copper tube wall thickness reduction ≥15%
• Compressor housing deformation >0.3mm
• Inverter capacitor capacity degradation below 70% initial value

Emergency Procedures

Refrigerant Leak Response

Immediately close shutoff valves and activate backup cooling. Locate leaks with halogen detectors, then perform vacuum drying (residual pressure ≤50Pa) followed by 24-hour nitrogen pressure testing.

Electrical Fault Resolution

For inverter "OC" (overcurrent) alarms:

1. Check motor insulation resistance (≥5MΩ)
2. Measure drive board output waveform (THD≤5%)
3. Update firmware (quarterly updates available on Samsung website)

Conclusion: The Future of Industrial Cooling

The Samsung Compressor Cooler SM3000 marks a paradigm shift from reactive to proactive cooling optimization. By integrating aerospace technology, nanomaterials science, and AIoT capabilities, it addresses traditional pain points of low efficiency, poor reliability, and high maintenance costs while providing critical infrastructure for smart manufacturing and renewable energy sectors.

Industry trends point toward three key developments:

1. Full lifecycle energy management: Digital twin technology for unified optimization across design, manufacturing, and operation phases
2. Modular integration: Standardized interfaces and plug-and-play architecture for rapid compressor system adaptation
3. Carbon-neutral operation: Combining heat recovery with renewable energy for net-negative emission cooling systems

As an Industry 4.0 benchmark product, the SM3000 not only demonstrates Samsung's technological leadership but also signals the global manufacturing shift toward greener, smarter, and more service-oriented solutions. For industrial users, adopting such advanced cooling technology delivers both immediate productivity gains and long-term sustainability benefits.
