Samsung Air Compressor Cooler
Samsung Compressor Cooler SM6000
Part Number List
#1 intercooler -part number HP16-002598C
#2 intercooler -part number HP16-002599C
#3 aftercooler -part number HP16-002600C
#1 intercooler -part number HP16-002598A
#2 intercooler -part number HP16-002599A
#3 aftercooler -part number HP16-002600A

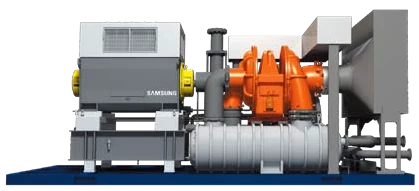

Samsung Hanwha Compressor Cooler SM6000 Overview
The Samsung Compressor Cooler SM6000 is designed for the high-capacity end of the SM Series centrifugal compressor range. The product line was originally promoted under Samsung Techwin, and the compressor business is now commonly searched with Samsung / Hanwha wording after Hanwha Group acquired Samsung Techwin in 2014. For replacement projects, this page uses Samsung Hanwha Compressor Cooler SM6000 terminology so buyers can match both legacy Samsung references and current Hanwha-related search terms.
14,000 - 21,000 lm³/hr
High-capacity SM6000 compressor range for cooler replacement projects.
3 - 25 barA
Wide pressure coverage for industrial centrifugal compressor service.
Inter + aftercooler
Cooler work focuses on water-side cleaning, pressure drop and access.
18,000 kg class
Large package weight makes drawing and site-envelope checks important.
SM6000 package focus
01
High-capacity cooler
Built for SM Series compressor cooler replacement and retrofit discussions.
02
Samsung / Hanwha
Matches legacy Samsung Techwin and Hanwha centrifugal compressor service searches.
03
Water-cooled duty
Focused on intercooler, aftercooler and cooling water manifold service needs.
04
Custom selection
Cooler sizing can be matched from drawings, site dimensions and operating data.
SM6000 Cooler Design Highlights
Easily serviceable coolers
Integrated cooler set
Intercooler and aftercooler service points are considered together.
Water-side cleaning
Straight water-in-tube design is accessible from both ends.
Industrial protection
Cooler construction is selected for corrosion and erosion resistance.
Package and control features
Inlet guide vane control
Matches compressor output to process air demand.
Flow and pressure control
Supports precise operation for process air applications.
Plug-and-run concept
Helps reduce installation complexity for SM6000 package projects.
Maintenance access
Designed around the cooler, lubrication and drive sections.
Standardized Package Includes
- 01Air inlet filter
- 02Inlet guide vanes
- 03After cooler
- 04Silencer
- 05Check valve
- 06Cooling water manifold
- 07Main drive motor
- 08Blow-off valve
- 09Controller
- 10Water drain traps and cooler service parts
SM6000 Specifications
| Description | SM2000 | SM3000 | SM4000 | SM5000 | SM6000 | |
|---|---|---|---|---|---|---|
| Motor | kW | 93~260 | 240~2,400 | |||
| Hp | 125~350 | 300~3,200 | ||||
| Capacity | lm³/hr | 700~3,000 | 3,000~5,000 | 5,000~8,000 | 8,000~14,000 | 14,000~21,000 |
| CFM | 410~1,800 | 1,800~3,000 | 3,000~4,700 | 4,700~8,200 | 8,200~12,200 | |
| Discharge Pressure | barA | 6.5~10 | 3~25 | |||
| PsiA | 94~145 | 43~360 | ||||
| L×W×H | mm | 2,550×1,500×1,900 | 4,350×2,100×2,100 | 4,650×2,100×2,215 | 5,200×2,150×2,350 | 5,800×2,300×2,550 |
| inch | 100×59×75 | 171×83×83 | 183×83×87 | 205×85×93 | 228×91×100 | |
| Weight | kg | 3,400 | 7,000 | 9,000 | 12,000 | 18,000 |
* Weight: excluding sound-proof enclosure, including electrical motor.
Product Range
For Samsung / Hanwha SM6000 cooler replacement, confirm the compressor model, cooler drawing, connection size, water-side condition, discharge pressure, capacity and installation envelope before production. Fete Vessel can support customized cooler replacement for Samsung Techwin legacy units and Hanwha-related compressor service projects.
Share Article
| Brand Name: | Fete Vessel | Design Standard: | ASME, PED, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 3 years | Production standard: | GB150.ASME.European standard. |
What are your strengths?
Ans. Our strengths lie in our expertise in design and manufacturing.
What is your estimated delivery time?
Ans. The delivery time varies depending on the specific product. Typically, it ranges from 10 to 40 working days.
What are your primary product offerings?
Ans. Our primary product offerings include industrial heat exchangers, pressure vessel, air dryer.
How can I get in touch with you?
Ans. We are available 24/7 through TradeManager for immediate assistance. Alternatively, you can contact us via email, WhatsApp, Skype, or WeChat. Select one of our products and message us, and we will promptly respond.
What are your payment terms?
Ans. Our payment terms require a 50% TT deposit in advance, with the remaining 50% TT balance due before delivery. We also offer the option of utilizing Alibaba Trade Assurance Service. We welcome any additional suggestions or inquiries regarding payment methods.
Feel free to Ask questions
Replacement support
Samsung Compressor Cooler SM6000 selection and replacement support
Fete Vessel supports engineers and purchasing teams who need a reliable replacement for Samsung Compressor Cooler SM6000. Share the compressor model, cooler dimensions, drawings, operating pressure, temperature, medium, and old part photos, and our team will compare the details before recommending a suitable manufacturing plan.
Fit and drawings
We review cooler dimensions, nozzle position, mounting size, drawings, old part photos, and site installation details.
Material and test
Each order can be checked for material, tube bundle layout, pressure test requirements, coating, packing, and delivery schedule.
Repair or replace
For urgent maintenance projects, we can help check whether an existing cooler can be repaired, retubed, or replaced.
