Samsung Air Compressor Cooler
Samsung Compressor Cooler SM3100
Part Number List
#1 intercooler HP16-002791B
#2 intercooler HP16-002792B

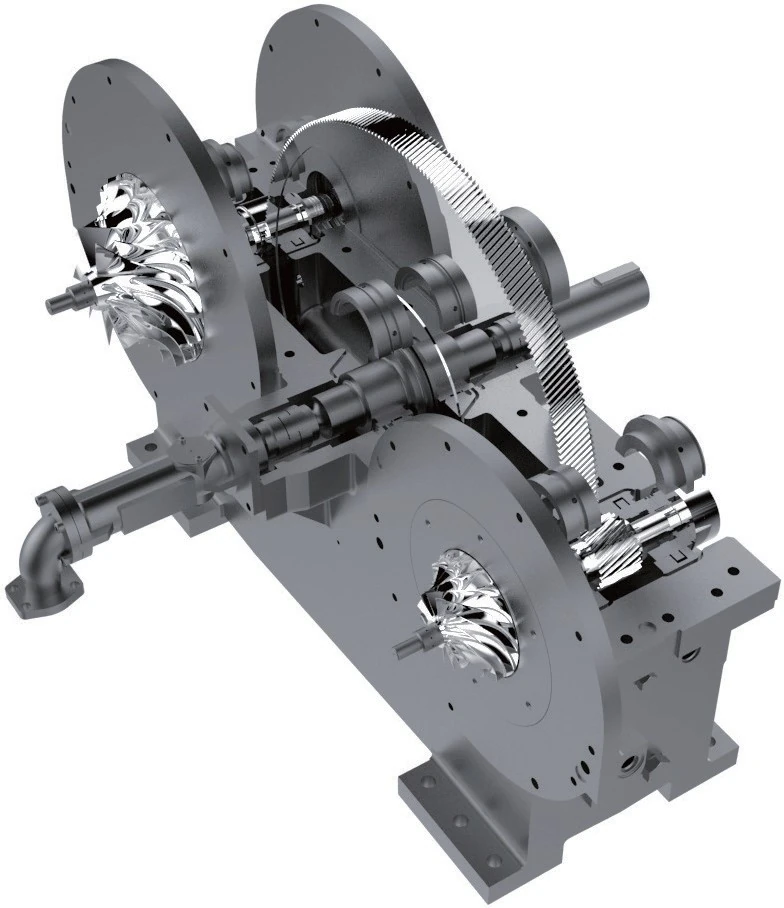

Samsung Hanwha Compressor Cooler SM3100 Overview
The Samsung Compressor Cooler SM3100 belongs to the Hanwha Power Systems SM100 Series and is positioned at the medium-flow entry of the SM3100-SM7100 lineup. Its 3,300 - 5,500 m³/hr range makes the cooler replacement work different from large-frame SM6100 projects: the main concern is usually matching the existing standard-type footprint, keeping service clearance around the water boxes, and avoiding unnecessary piping changes in a smaller compressor room.
3,300 - 5,500 m³/hr
Medium-flow SM100 Series compressor range for SM3100 cooler replacement.
3.5 - 13 Bar A
Pressure range for SM100 Series water-cooled compressor service.
200 - 580 kW
Motor power band to consider when checking cooling duty and package data.
Standard footprint
Dimension and service-clearance checks are key for smaller compressor rooms.
Where SM3100 cooler replacement differs
01
Medium-flow service
Best suited to SM100 Series cooler replacement rather than large-frame package retrofit.
02
Footprint check
Standard-type dimensions are commonly checked around 3,210 x 2,150 x 1,920 mm.
03
Water-side access
Drain position and cleaning access matter more than oversizing cooler capacity.
04
Layout preservation
Replacement planning should keep piping, supports and maintenance aisles usable.
SM3100 Cooler Replacement Notes
Fit and connection checks
For SM3100, the replacement cooler should be checked against the original bundle length, shell diameter, water nozzle direction, support position and removal clearance.
Package or standard type
Confirm the frame type before quoting the SM3100 cooler.
Nozzle orientation
Match water inlet and outlet direction to existing piping.
Tube cleaning space
Leave enough space for tube-side cleaning and bundle removal.
Cooling duty considerations
The SM3100 flow range does not need the same water volume or lifting arrangement as SM6100. A good replacement focuses on stable temperature control and low fouling risk.
Water quality history
Review fouling, scaling and corrosion before material selection.
Pressure drop margin
Check cooler pressure drop against the existing pump margin.
Compatible materials
Keep tube and water-box materials aligned with site water conditions.
SM3100 Specifications
| Model | SM3100 | SM4100 | SM5100 | SM6100 | SM7100 | |
|---|---|---|---|---|---|---|
| Flow Rate | m³/hr | 3,300 - 5,500 | 5,500 - 9,000 | 9,000 - 15,000 | 15,000 - 24,500 | 24,500 - 32,000 |
| CFM | 1,950 - 3,250 | 3,250 - 5,300 | 5,300 - 8,850 | 8,850 - 14,400 | 14,400 - 18,800 | |
| Power | kW | 200 - 580 | 300 - 930 | 500 - 1,500 | 800 - 2,500 | 1,000 - 3,100 |
| HP | 270 - 780 | 400 - 1,200 | 670 - 2,010 | 1,070 - 3,350 | 1,340 - 4,155 | |
| Discharge Pressure | Bar A | 3.5 - 13 | ||||
| Psi A | 50 - 188 | |||||
| Dimension (L×W×H) - Package type | mm | 5,250 x 2,250 x 2,500 | 5,500 x 2,250 x 2,500 | 6,250 x 2,250 x 2,550 | 7,100 x 2,250 x 2,550 | - |
| inch | 207 x 89 x 98 | 217 x 89 x 98 | 246 x 89 x 100 | 244 x 89 x 100 | - | |
| Dimension (L×W×H) - Standard type | mm | 3,210 x 2,150 x 1,920 | 3,800 x 2,300 x 2,050 | 4,750 x 2,490 x 2,130 | 5,290 x 2,400 x 2,420 | 5,700 x 2,800 x 2,950 |
| inch | 126 x 85 x 76 | 150 x 91 x 81 | 187 x 98 x 84 | 208 x 95 x 95 | 224 x 110 x 106 | |
| Weight | Kg - Package | 8,600 | 9,500 | 13,150 | 17,900 | - |
| Kg - Standard | 6,900 | 7,500 | 10,300 | 14,450 | 20,500 | |
* Dimension and weight are subject to change. P = Package type, S = Standard type.
Product Range
Information Needed Before Production
| Check item | Why it matters for SM3100 |
|---|---|
| Original cooler drawing or nameplate | Confirms bundle length, nozzle size, mounting position and pressure rating. |
| Package type or standard type | Determines whether base frame, enclosure and cooling water manifold affect installation space. |
| Cooling water condition | Helps choose material and cleaning allowance for fouling, scaling or corrosion risk. |
| Removal direction | Ensures the cooler can be serviced without changing the compressor room layout. |
| Operating pressure and flow | Keeps replacement cooler performance aligned with the 3,300 - 5,500 m³/hr SM3100 range. |
This SM3100 page intentionally focuses on medium-flow replacement details rather than repeating the larger SM6100 package discussion. Fete Vessel can support customized Samsung / Hanwha SM3100 compressor cooler replacement based on drawings, site photos and operating data.
Share Article
| Brand Name: | Fete Vessel | Design Standard: | ASME, PED, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 3 years | Production standard: | GB150.ASME.European standard. |
What are your strengths?
Ans. Our strengths lie in our expertise in design and manufacturing.
What is your estimated delivery time?
Ans. The delivery time varies depending on the specific product. Typically, it ranges from 10 to 40 working days.
What are your primary product offerings?
Ans. Our primary product offerings include industrial heat exchangers, pressure vessel, air dryer.
How can I get in touch with you?
Ans. We are available 24/7 through TradeManager for immediate assistance. Alternatively, you can contact us via email, WhatsApp, Skype, or WeChat. Select one of our products and message us, and we will promptly respond.
What are your payment terms?
Ans. Our payment terms require a 50% TT deposit in advance, with the remaining 50% TT balance due before delivery. We also offer the option of utilizing Alibaba Trade Assurance Service. We welcome any additional suggestions or inquiries regarding payment methods.
Feel free to Ask questions
Replacement support
Samsung Compressor Cooler SM3100 selection and replacement support
Fete Vessel supports engineers and purchasing teams who need a reliable replacement for Samsung Compressor Cooler SM3100. Share the compressor model, cooler dimensions, drawings, operating pressure, temperature, medium, and old part photos, and our team will compare the details before recommending a suitable manufacturing plan.
Fit and drawings
We review cooler dimensions, nozzle position, mounting size, drawings, old part photos, and site installation details.
Material and test
Each order can be checked for material, tube bundle layout, pressure test requirements, coating, packing, and delivery schedule.
Repair or replace
For urgent maintenance projects, we can help check whether an existing cooler can be repaired, retubed, or replaced.
