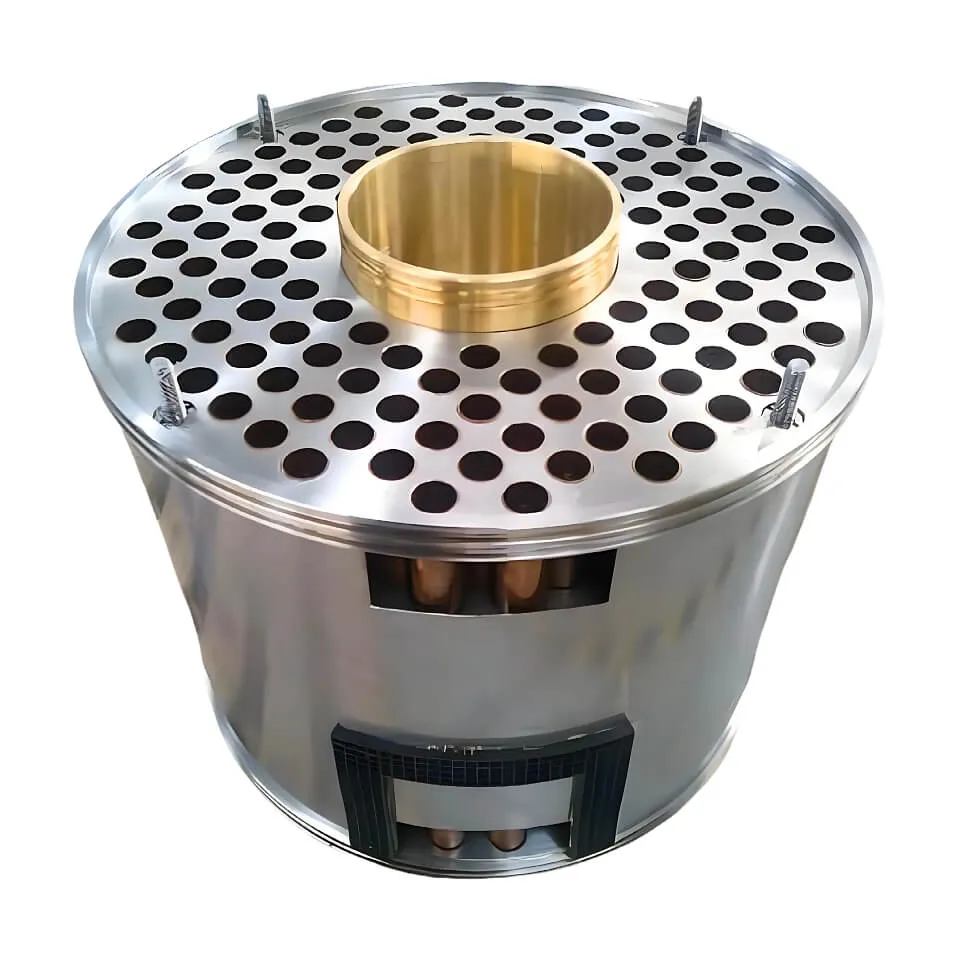

Centac Cooler CV1

Product Overview: Core Component of Efficient Heat Exchange Systems

The Centac Cooler CV1 serves as the critical heat exchange component for Ingersoll Rand Centac series centrifugal air compressors. Engineered for industrial compressed air systems, its primary function involves indirect heat exchange between cooling water and compressed air to effectively dissipate heat generated during compression.

Technical Architecture & Core Parameters

Feature	Specification
Structural Design	Double-pass shell and tube configuration (air through tubes, water through shell) with corrugated finned inner tubes
Material Composition	CuNi alloy or pure copper tubes with stainless steel end caps/side panels
Heat Exchange Efficiency	Cooling Temperature Difference (CTD) ≤5°C, pressure loss ≤0.05 MPa
Flow Capacity	Compatible with Centac CV1 models (22-41 m³/min air flow), requiring 15-30 L/s cooling water

Technical Features: Precision Thermal Management Engineering

1. Advanced Heat Exchange Technology

The corrugated fin design increases air velocity to 12-15 m/s, enhancing turbulence by 30% and improving heat transfer coefficient by 25%. CuNi alloy tubes (90/10 or 70/30) demonstrate 3x better corrosion resistance in seawater or chlorinated cooling water environments.

2. Reliability & Maintenance

Fully welded construction reduces leakage risk to ≤0.1%. U-shaped tube bundles allow in-place cleaning within ≤2 hours. Optional dual cooling circuits maintain 80% capacity during single-loop failures.

3. Smart Control Integration

Integrated with Centac's C1000 microprocessor system for real-time monitoring of temperature, pressure and water quality parameters. Machine learning algorithms provide 14-day advance maintenance alerts.

Applications: Cross-Industry Thermal Solutions

1. Typical Implementation Scenarios

• Chemical Processing: Maintains stable hydrogen compressor air temperatures for refinery hydrocracking units
• Food & Beverage: Cools compressed air below 5°C to prevent condensation in sterile filling lines
• Semiconductor: Delivers Class 0 oil-free air with ±1°C temperature stability for wafer etching

2. Case Studies

Industry	Challenge	Solution	Results
Petrochemical	48hr annual downtime from seawater corrosion	CuNi tubes with Heresite coating	15yr lifespan, 60% lower maintenance
Semiconductor	85% yield from temperature fluctuations	Precision ±0.5°C control	98% yield, $2M annual savings

Maintenance Strategy: Lifecycle Optimization

1. Routine Procedures

Maintain cooling water parameters: ≤150ppm hardness, pH 6.5-8.5, ≤50ppm chlorides. Weekly leak checks with helium mass spectrometers.

2. Scheduled Maintenance

Bi-annual chemical cleaning (5% citric acid + 2% EDTA at 50°C). Annual mechanical cleaning with ≤20MPa water jets.

3. Troubleshooting

Symptom	Probable Cause	Corrective Action
Reduced cooling	Tube fouling	Initiate cleaning protocol
Leakage	Seal degradation	Replace fluorocarbon seals

Conclusion: Advancing Industrial Thermal Management

The Centac Cooler CV1 redefines industrial thermal standards through material innovation and smart control integration. Its combination of CuNi alloy construction, optimized fin geometry, and predictive maintenance capabilities positions it as essential infrastructure for modern manufacturing. As Industry 4.0 progresses, CV1's digital twin integration will further enhance reliability while reducing operational costs.
