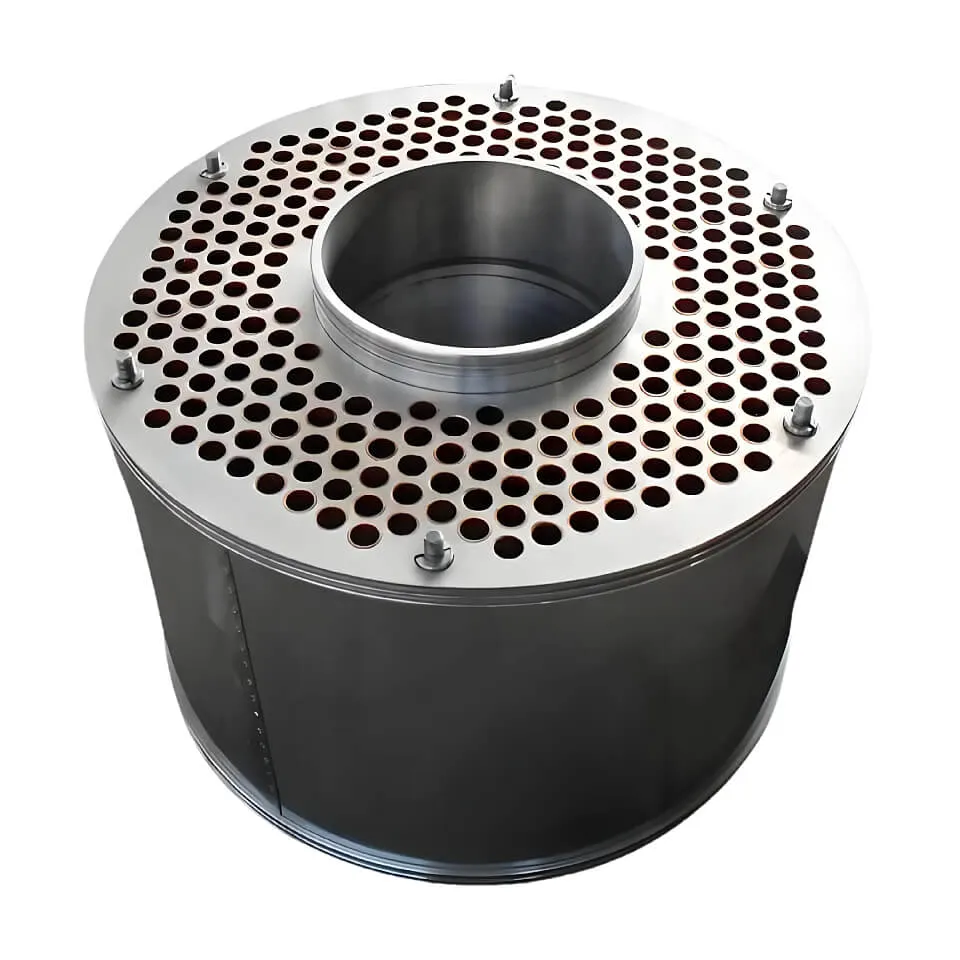

Centac Cooler 5C

1. Product Overview: Core Component for Efficient Heat Exchange

The Centac Cooler 5C serves as the critical temperature control component in industrial centrifugal air compressor systems. Engineered based on multi-stage compression thermodynamics, it enhances heat transfer efficiency between air and cooling media to ensure stable compressor operation under high-efficiency conditions. This modular cooler integrates with Centac series compressors' three-stage compression units, working alongside diffusers and sealing systems to form a complete thermal management solution.

1.1 Structural Composition and Operating Principle

The cooler features a multi-tube flow path system with copper tube/stainless steel cover composite construction. Air flows through tubes while cooling water circulates externally, creating counter-flow heat exchange channels. Wave-shaped fins increase air-side heat transfer area by 30+%. Water distributes evenly via top headers while air enters from the bottom, forming spiral upward flow guided by diffusers for optimal turbulent contact. This design reduces air temperature from 150-180°C post-compression to 40-50°C with 75%+ cooling efficiency.

1.2 Performance Specifications

Parameter	Specification
Flow Range	Compatible with Centac C250/350 units, handles 50-74m³/min
Pressure Drop	Air side ≤0.02MPa, Water side ≤0.05MPa
Materials	B10 CuNi alloy tubes, 316L stainless steel covers, optional Heresite coating (C5M grade)
Connections	DN50 flanged water inlet, DN80 welded air outlet

2. Technical Features with Data-Driven Analysis

2.1 Enhanced Heat Transfer Technology

Wave-Shaped Fins: 0.15mm aluminum fins with 12mm height, 2.5mm pitch, anodized surface treatment boosts air-side heat transfer coefficient to 120W/(m²·K).

Fluid Dynamics: CFD-optimized staggered tube arrangement increases turbulence by 40%, with spiral baffles eliminating flow dead zones.

Anti-Corrosion: Heresite P-413 coating passes 2000-hour salt spray testing for marine/chemical environments.

2.2 Automation Systems

Hydraulic Dumping: ±15° adjustable hydraulic flaps with level sensors maintain 10-50mm material layer thickness.

Temperature Control: RTD sensors trigger bypass valves when outlet water exceeds 55°C.

Diagnostics: Vibration sensors detect abnormal 120Hz frequencies for early failure warnings.

2.3 Energy Efficiency Design

Water Optimization: 5-8°C temperature difference reduces consumption 30% versus conventional designs.

Pressure Recovery: Compressor exhaust drives water circulation pumps to cut motor power.

Modular Expansion: Parallel installation with pressure-balancing valves for smart flow distribution.

3. Application Scenarios and Case Studies

3.1 Industrial Applications

Petrochemical: Cools ethylene cracker compressors maintaining ≤60°C at 8.5MPa.

Mining: Supports drill rig compressors at 3000m altitude/45°C ambient with ≤110°C discharge.

Power Generation: Cools gas turbine intake air from 38°C to 18°C, boosting output 3.2%.

3.2 Case Analysis

Case 1: Petrochemical Plant - Solved scaling issues with automatic backflushing, reducing water use to 0.8m³/h and extending compressor runtime.

Case 2: Open-Pit Mine - DXG dust-proof model with 3-stage filtration reduced fouling in 1200μg/m³ PM10 environments.

4. Maintenance Strategy

4.1 Routine Checks

Daily pressure monitoring, shift temperature recording, weekly leak inspections with soap solution.

4.2 Advanced Maintenance

Annual citric acid cleaning, biennial eddy current tube inspection, localized coating repairs.

4.3 Spare Parts

Critical spares: B10 alloy tubes, hydraulic seals, RTD sensors. Implement vibration-based life prediction for proactive replacement.

5. Conclusion

The Centac Cooler 5C redefines industrial thermal management through material science, fluid dynamics, and smart controls. Proven in petrochemical and mining applications, it extends compressor MTBF while reducing maintenance. With Industry 4.0 integration, digital twin technology will further unlock its potential as a sustainable cooling solution for energy-intensive industries.
