Ingersoll Rand Air Compressor Cooler
Centac Cooler C950
Part Number List
7X12113/7X14883 /23972383/68150010/
23866387/68165513/7X14948/67791947
8X10632/68150010/C1752/67791954/C1753
7X12114/7X14886 /23972276/68149988/7X13220
7X15035/68183144/23978711/68165505

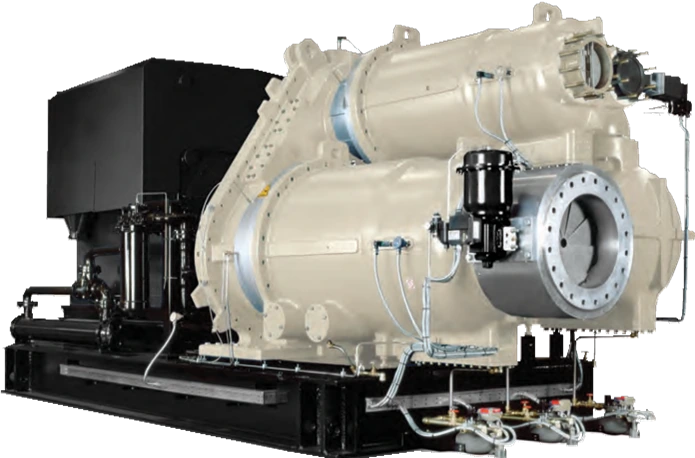

Ingersoll Rand Centac Cooler C950 Overview
Centac Cooler C950 belongs to the Ingersoll Rand oil-free centrifugal compressor family. In this platform, intercooler and aftercooler performance directly affects discharge temperature, pressure stability and long-run compressor reliability in continuous industrial duty.
The C950 package is used in higher flow range service than C700, so cooler selection usually focuses on heat transfer margin, pressure drop control, water-side maintainability and installation envelope matching.
4,150 - 6,050 cfm
C950 standard pressure flow range from source model table.
500 - 1,500 HP
Compressor power band that drives cooler duty level.
Inter + aftercooler
Integrated cooler section for stage temperature control.
Maintenance focused
Water-side cleaning and bundle access are key in replacement projects.
Compressor Background
1
Oil-free centrifugal compressor architecture for industrial process air.
2
Cooling section is integrated with compressor staging and package controls.
3
C950 projects typically need model/drawing verification before production.
C950 Cooler Design Focus

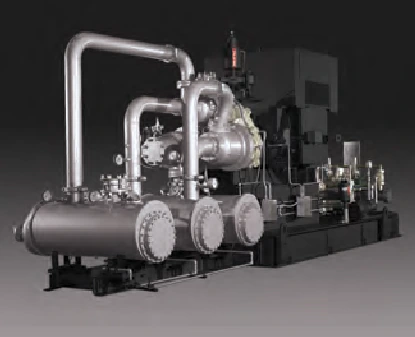

Centac package with visible cooler vessels from the source PPT.

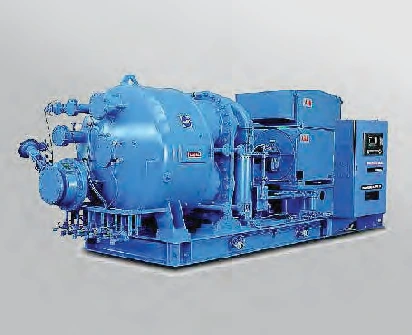

Centac unit reference used for C950 compressor background.
C700 vs C950 Capacity Comparison
| Model | Flow (cfm) | Flow (m3/min) | Power (HP) | Power (kW) |
|---|---|---|---|---|
| C700 | 2,000 - 4,100 | 60 - 115 | 400 - 900 | 300 - 660 |
| C950 | 4,150 - 6,050 | 120 - 170 | 500 - 1,500 | 350 - 1,100 |
Model Range Data
| Low Pressure Model | Flow (cfm) | Flow (m3/min) | Power (HP) | Power (kW) |
|---|---|---|---|---|
| CH4 | 800 - 1,400 | 25 - 40 | 125 - 200 | 90 - 150 |
| CH5 | 1,300 - 3,000 | 42 - 80 | 175 - 350 | 132 - 270 |
| CH6 | 3,000 - 6,000 | 90 - 160 | 350 - 600 | 270 - 430 |
| High Pressure Model | Flow (cfm) | Flow (m3/min) | Power (HP) | Power (kW) |
|---|---|---|---|---|
| CX25 | 3,500 - 5,000 | 100 - 140 | 250 - 500 | 200 - 350 |
| CX35 | 4,500 - 6,500 | 130 - 185 | 300 - 600 | 200 - 450 |
| CX45 | 9,000 - 16,000 | 255 - 450 | 800 - 1,500 | 600 - 1,100 |
| CX55 | 15,000 - 22,000 | 420 - 620 | 900 - 2,000 | 660 - 1,500 |
| CX65 | 20,000 - 30,000 | 570 - 850 | 1,250 - 2,500 | 900 - 1,850 |
| CX75 | 27,000 - 44,000 | 760 - 1250 | 1,750 - 3,600 | 1,300 - 2,700 |
| Standard Pressure Model | Flow (cfm) | Flow (m3/min) | Power (HP) | Power (kW) |
|---|---|---|---|---|
| CV1 | 800 - 1,500 | 25 - 40 | 200 - 350 | 150 - 270 |
| C250 | 1,100 - 1,800 | 30 - 50 | 250 - 350 | 200 - 270 |
| CV1A | 1,800 - 2,450 | 42 - 80 | 350 - 500 | 270 - 350 |
| CV1B | 1,800 - 2,350 | 42 - 70 | 350 - 450 | 270 - 350 |
| C700 | 2,000 - 4,100 | 60 - 115 | 400 - 900 | 300 - 660 |
| C950 | 4,150 - 6,050 | 120 - 170 | 500 - 1,500 | 350 - 1,100 |
| 3CII | 6,000 - 9,000 | 170 - 255 | 1,000 - 2,000 | 750 - 1,500 |
| C3000 | 9,000 - 15,000 | 270 - 450 | 1,750 - 3,500 | 1,300 - 2,600 |
| 5CII | 12,500 - 30,000 | 350 - 850 | 1,750 - 6,000 | 1,300 - 4,500 |
| 2ASB | 3,300 - 4,600 | 90 - 130 | 1,000 - 1,750 | 750 - 1,300 |
| 2CII | 3,000 - 4,600 | 90 - 130 | 880 - 1,750 | 600 - 1,300 |
| C750 | 1,800 - 2,100 | 50 - 60 | 700 - 900 | 530 - 660 |
| C1050 | 4,000 | 115 | 1,500 | 1,150 |
| 3C | 5,000 - 10,000 | 170 - 255 | 1,500 - 3,000 | 1,100 - 2,250 |
| 4C | 9,000 - 15,000 | 255 - 425 | 2,500 - 4,500 | 1,850 - 3,350 |
Centac Cooler C950 Technical Summary
| Parameter | C950 Reference |
|---|---|
| Cooling Structure | Centac integrated cooler section for multistage oil-free centrifugal compressor duty |
| Heat Exchange Design | Air-to-water cooling path with compressor-side pressure-loss control |
| System Objective | Reduce stage temperature, support stable pressure and improve downstream air quality |
| Compressor Integration | Mounted within packaged Centac compressor architecture |
| Typical Application Context | Industrial facilities requiring reliable continuous oil-free compressed air |
For Centac Cooler C950 replacement, confirm exact compressor model, original cooler drawing, cooling-water quality, connection orientation, pressure and flow data before manufacturing.
Share Article
| Brand Name: | Fete Vessel | Design Standard: | ASME, PED, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 3 years | Production standard: | GB150.ASME.European standard. |
What are your strengths?
Ans. Our strengths lie in our expertise in design and manufacturing.
What is your estimated delivery time?
Ans. The delivery time varies depending on the specific product. Typically, it ranges from 10 to 40 working days.
What are your primary product offerings?
Ans. Our primary product offerings include industrial heat exchangers, pressure vessel, air dryer.
How can I get in touch with you?
Ans. We are available 24/7 through TradeManager for immediate assistance. Alternatively, you can contact us via email, WhatsApp, Skype, or WeChat. Select one of our products and message us, and we will promptly respond.
What are your payment terms?
Ans. Our payment terms require a 50% TT deposit in advance, with the remaining 50% TT balance due before delivery. We also offer the option of utilizing Alibaba Trade Assurance Service. We welcome any additional suggestions or inquiries regarding payment methods.
Feel free to Ask questions
Replacement support
Centac Cooler C950 selection and replacement support
Fete Vessel supports engineers and purchasing teams who need a reliable replacement for Centac Cooler C950. Share the compressor model, cooler dimensions, drawings, operating pressure, temperature, medium, and old part photos, and our team will compare the details before recommending a suitable manufacturing plan.
Fit and drawings
We review cooler dimensions, nozzle position, mounting size, drawings, old part photos, and site installation details.
Material and test
Each order can be checked for material, tube bundle layout, pressure test requirements, coating, packing, and delivery schedule.
Repair or replace
For urgent maintenance projects, we can help check whether an existing cooler can be repaired, retubed, or replaced.
