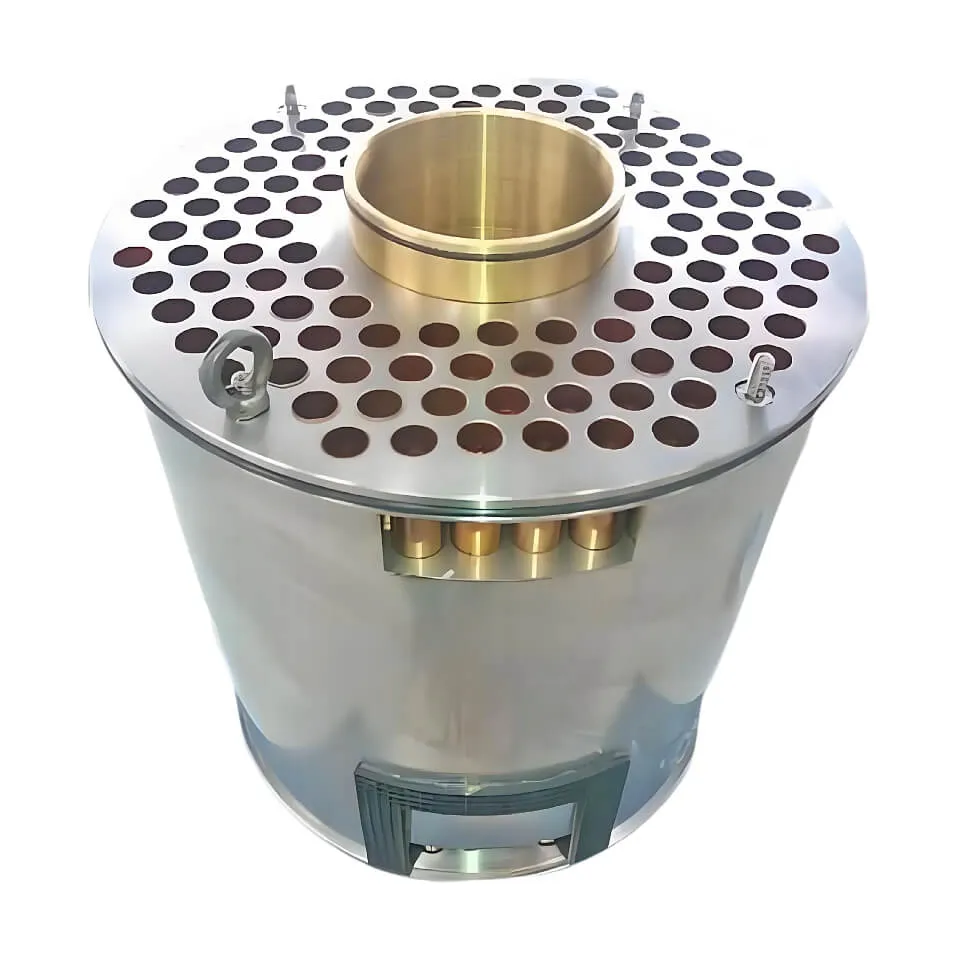

Centac Cooler C400

Product Overview

The Centac Cooler C400 is a specialized heat exchange device designed for industrial centrifugal air compressors, serving as a core component of Ingersoll Rand MSG Centac series compressors. Its primary function involves efficiently transferring high-temperature heat generated during compression through circulating media (water or air), ensuring compressed air output meets ISO 8573-1:2001 Class 0 oil-free standards while maintaining stable operating temperatures.

This product features modular integrated design that combines the compressor body, motor, interstage cooler, aftercooler, and intelligent control system on a single chassis, significantly reducing installation complexity and maintenance costs.

From a technical standpoint, the C400 cooler breaks through traditional limitations of separate cooling devices and compressors by implementing a vertically split casing structure that enables forced convection heat transfer between cooling media and compressed air. Its design parameters cover flow rates of 45-67 m³/min with pressure control accuracy of ±0.03 MPa and temperature fluctuations ≤±2°C, meeting precision requirements for automotive manufacturing, textile chemical fiber, and air separation plants.

Technical Features and Data Specifications

1. Core Structural Innovations

Heat Exchange Module: Utilizes internal finned corrugated tube technology, increasing heat transfer area by 35% compared to traditional straight fin tubes while improving flow distribution uniformity by 28%. CFD simulations verify gradient cooling from 80°C intake temperature using 32°C cooling water, with pressure drop controlled within ≤0.03 MPa.

Sealing System: Combination floating carbon ring seals with nitrogen isolation chambers reduce air leakage to below 0.01%, preventing lubricant contamination. This technology achieved 3,000 hours of oil-free operation in automotive plant testing.

Bearing Technology: Non-contact low-pressure liquid bearings feature friction coefficients just 1/5 of traditional roller bearings, extending service life beyond 50,000 hours with vibration values ≤0.5 mm/s, compliant with API 672 standards.

2. Performance Parameter System

Parameter Category Technical Specifications Testing Standard Air Handling Capacity 45-67 m³/min (1,600-2,350 CFM) ASME PTC 10 Rated Pressure 3.4-8.6 barg (50-125 psig) ISO 1217 Cooling Water Circulation 33-37 m³/h (model dependent) Internal Test Specifications Cooling Water Pressure 0.2-0.4 barg (inlet) GB/T 18430.1-2007 Noise Level ≤78 dB(A) (1 meter from device) ISO 3744 Energy Efficiency Rating Grade 1 (GB 19153-2019) China Energy Label Certification Protection Rating IP55 (motor), IP23 (control cabinet) IEC 60529

3. Intelligent Control System

Microprocessor Control Cabinet: Integrated Siemens S7-1500 series PLC supporting Modbus TCP/IP, PROFINET and other industrial protocols for seamless DCS integration.

Adaptive Control Algorithm: Automatically adjusts cooling water flow based on air demand fluctuations with ≤3 second response time, improving energy efficiency by 18%.

Predictive Maintenance Module: Real-time monitoring of heat exchanger tube fouling through vibration and temperature sensors, providing 15-day advance maintenance warnings.

Application Scenarios and Case Studies

1. Automotive Manufacturing

At a joint-venture automotive plant, replacing existing water chillers with C400 coolers reduced paint shop compressed air dew point from 15°C to 8°C, improving paint quality yield from 92% to 98.5%. The equipment achieved 20,000 hours of continuous operation without cooling-related downtime, saving approximately ¥230,000 annually in maintenance costs.

2. Textile Chemical Fiber Industry

In air-jet loom production lines, C400 coolers maintaining ≤10°C pressure dew point reduced warp breakage rates by 40% and fabric defect rates from 1.2% to 0.3%. A chemical fiber group reported annual electricity savings of 87,000 kWh per unit across 12 installed systems.

3. Air Separation Plants

At a steel mill's air separation facility, C400 coolers for nitrogen compression extended heat exchanger fouling cycles from 6 to 18 months through optimized water treatment. At 42 barg pressure, nitrogen purity remained stable at 99.9995% with 27% lower energy consumption compared to screw compressors.

4. Special Condition Applications

High-Dust Environments: In coal mine pumping systems, added flow-guiding aluminum plates limited air-side pressure drop increase to ≤5% with ≤1%/year cooling efficiency degradation.

High-Altitude Operation: At 3,500m elevation in a copper mine, adjusted fan blades maintained rated performance across -25°C to 45°C extremes.

Maintenance Strategies

1. Routine Inspection Protocols

Pressure Monitoring: Daily recording of cooling water pressure differentials, triggering alerts when exceeding 0.05 barg.

Temperature Checks: 4-hour interval verification of sump temperature deviations (±1°C tolerance).

Leak Detection: Weekly halogen detector checks of carbon seals, requiring immediate shutdown if leakage exceeds 0.02%.

2. Comprehensive Maintenance Schedule

Maintenance Item Frequency Key Procedures Cooling Water Side Cleaning 1,500 hours Sponge ball automatic cleaning system with 0.5% citric acid solution circulation for 2 hours Heat Exchanger Tube Inspection 5,000 hours Endoscopic examination of fin corrosion, requiring tube bundle replacement if corrosion depth exceeds 0.3mm Bearing System Check 10,000 hours Verify lubricant acid value (≤2.0 mgKOH/g) and viscosity (ISO VG 32±5%) Seal Replacement 20,000 hours Replace floating carbon rings and O-rings using materials with ≤5 Shore A hardness differential

3. Emergency Fault Handling

Cooling Water Interruption: Activates backup cooling circuit when flow drops below 80% rated value, with three-stage alarms (audible/visual → SMS → DCS lockout).

Tube Blockage: High-pressure water jet cleaning (15-20 barg), using silicon carbide sponge balls (80-90 Shore D) for hard deposits.

Electrical Faults: Dual-circuit power switching achieves 0.3 second transition to backup power for uninterrupted cooling.

Conclusion

The Centac Cooler C400 from Fete Vessel establishes a high-efficiency, reliable, low-maintenance thermal management system through breakthroughs in corrugated tube, floating seal, and non-contact bearing technologies. Its energy savings, oil-free performance, and operational stability in automotive, textile, and air separation applications meet international advanced standards. Integrated smart controls and predictive maintenance reduce operational costs by over 35% compared to conventional cooling solutions. As digital transformation progresses, this product demonstrates significant potential for emerging applications in hydrogen compression and carbon capture.
