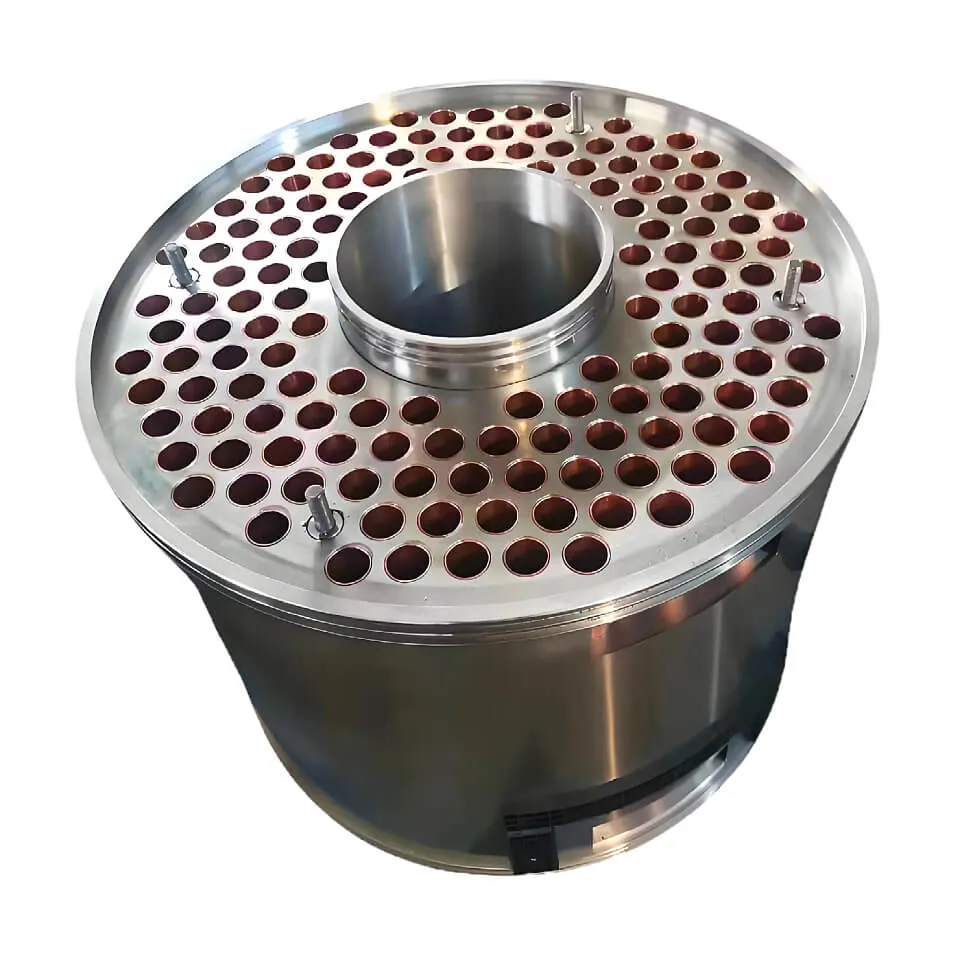

Centac Cooler 2CV

1. Product Overview: Core Temperature Control Component for Centrifugal Compressor Systems

The Centac Cooler 2CV is a specialized cooling unit designed by Fete Vessel for CENTAC series centrifugal air compressors, serving as a critical heat exchange component in multi-stage compressed air systems. This cooler efficiently removes heat generated during compression through indirect heat exchange between cooling water and compressed air, ensuring stable operation within flow rates of 720-51,000 m³/h and pressure ranges of 0.7-22.5 kg/cm². Its core functions include:

• Thermal Load Management: Controls outlet temperature below 50°C for high-temperature air (up to 200°C+) from each compression stage, meeting requirements for downstream equipment like dryers and air receivers
• Energy Efficiency Optimization: Reduces energy consumption in subsequent processes by lowering air temperature, improving mold filling efficiency by over 15% in PET blow molding applications
• System Protection: Prevents high-temperature induced seal aging and bearing lubrication failures, extending MTBF (Mean Time Between Failures) beyond 8,000 hours

2. Technical Features and Data Specifications

(1) Structural Innovations and Process Breakthroughs

• Tandem Graphite Seal Floating Ring Technology
  • Dual-seal structure: Inner graphite floating ring maintains 0.05mm clearance with shaft neck, while outer ring uses 12-15 psig clean air as barrier gas, achieving <1% leakage rate with zero oil contamination
  • Temperature resistance: Continuous operation between -40°C to 250°C, suitable for extreme conditions like high-altitude regions (e.g., Qinghai-Tibet Railway)
• High-Efficiency Sleeve Air Cooler (Patented Technology)
  • Heat transfer efficiency: Special internal fin design boosts air-side heat transfer coefficient to 120 W/(m²·K), 40% improvement over conventional smooth-tube designs
  • Pressure loss control: Air-side pressure drop ≤0.02 bar, maintaining system COP >3.5
  • Corrosion resistance: Copper tubes with Heresite coating withstand 100ppm sulfur environments for 10+ year service life

(2) Performance Parameters and Test Data

Parameter	Centac Cooler 2CV Specification	Test Conditions
Air Handling Capacity	42-62 m³/min (1,500-2,200 CFM)	Inlet pressure 10 barg, temperature 120°C
Cooling Water Flow	8-12 m³/h	Inlet water 32°C, 8°C temperature difference
Heat Transfer Coefficient	115-125 W/(m²·K)	ASHRAE standard test conditions
Noise Level	≤75 dB(A)	Measured at 1m distance
Weight	4,128 kg	Including cooling water system

3. Application Scenarios and Case Studies

(1) Typical Applications

• Pharmaceutical Industry: Combined with 0.5μm air filters for sterile compressed air (-40°C dew point) in fermentation processes, improving penicillin yield by 18% at a Suzhou facility
• Petrochemical Refining: Precise temperature control (±2°C) for catalyst transport in fluidized beds, saving 1,200 tons CO₂ equivalent annually at Sinopec Zhenhai project
• Data Centers: Coupled with immersion cooling for 25°C constant-temperature server air, achieving PUE <1.15 at Tencent Tianjin data center

4. Maintenance Strategy

(1) Preventive Maintenance System

• Daily Checks: Ultrasonic flow monitoring (monthly), seal gas pressure verification (weekly)
• Annual Overhaul: Tube bundle cleaning with 0.5% citric acid, graphite ring replacement (biennial), ISO 1217 performance testing

5. Technology Evolution and Industry Value

(1) Next-Generation Development

• Phase-Change Cooling: R245fa refrigerant in vacuum tubes targeting 300 W/(m²·K) heat transfer coefficient
• Digital Twin Operation: AI-powered fouling prediction improving maintenance cycles by 40% at Shell Rotterdam refinery
