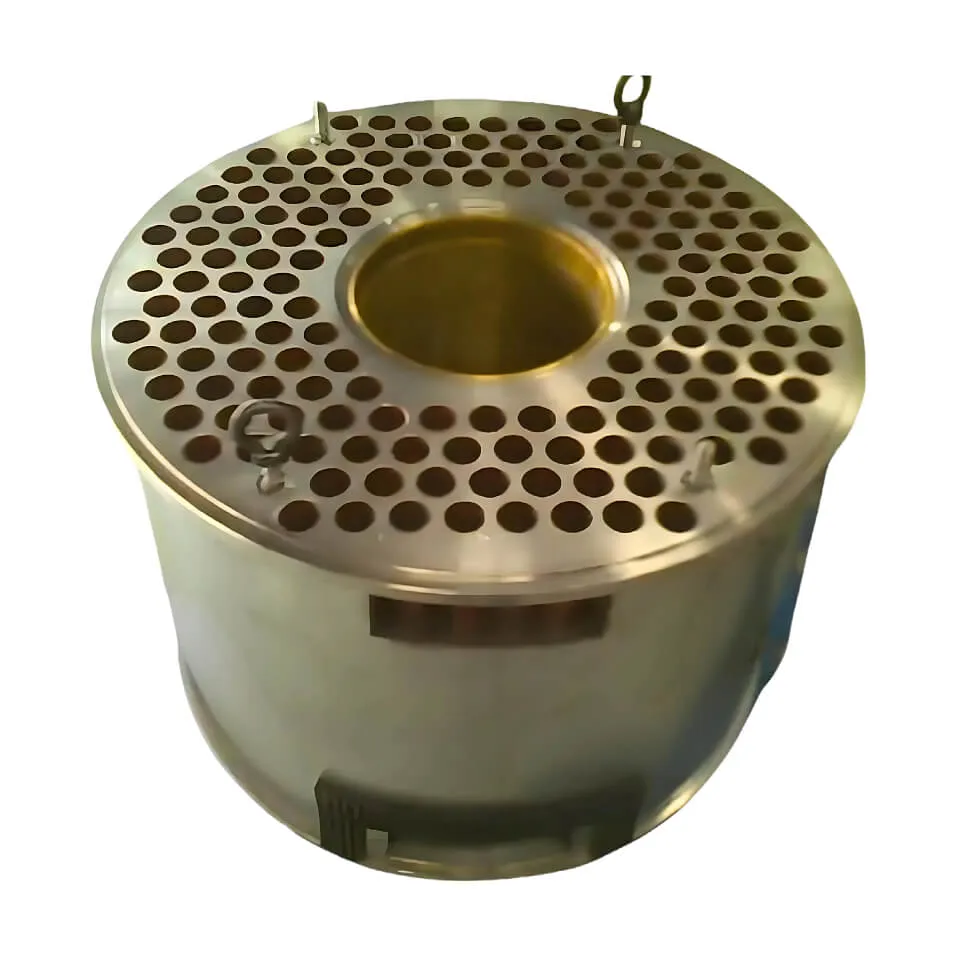

Centac Cooler 1CII

1. Product Overview: The Industrial Foundation of High-Efficiency Cooling Technology

The Centac Cooler 1CII serves as the core component of Ingersoll Rand's CENTAC series centrifugal air compressors, designed as a multi-stage cooling solution for industrial gas compression systems. This cooler features a sleeve-type high-efficiency heat exchange structure that precisely regulates gas temperature through countercurrent heat exchange between air and cooling water, with technological breakthroughs in traditional cooler thermal resistance optimization and fluid dynamics design.

1.1 Structural Innovations and Material Selection

• Dual-medium separation design: Air flows through tubes while cooling water circulates outside, with special internal fins enhancing heat exchange efficiency by 200% compared to traditional shell-and-tube coolers, significantly reducing temperature rise and scaling risks.
• Corrosion-resistant alloy materials: Core components utilize 316L stainless steel and graphite sealing floating rings, ensuring structural stability in high-temperature, high-pressure environments while delivering ISO 8573-1:2001 Class 0 certified air purity through oil-free sealing technology.
• Modular integrated architecture: Features integrated chassis layout with compressor body, interstage diffusers, and aftercoolers, reducing exposed piping and expansion joints to lower system complexity and maintenance costs.

1.2 Core Performance Parameters

Parameter	Technical Specification	Application Significance
Flow Range	170-255 m³/min (6000-9000 CFM)	Covers small to medium industrial requirements
Pressure Range	3.1-10.3 barg (45-150 psig)	Adapts to interstage cooling needs of multi-stage compressors
Heat Exchange Efficiency	≥92% (water side temperature rise ≤8℃)	Reduces cooling water consumption and energy usage
Fouling Factor	≤0.00018 m²·K/W	Decreases cleaning frequency and extends operation cycles
Vibration Resistance	ISO 10816-3 Class A	Suited for high-vibration environments like chemical plants and mines

2. Technical Features and Data-Driven Description

2.1 High-Efficiency Heat Exchange Mechanism

• Internal fin-enhanced heat transfer: Spiral internal fins on cooling tube walls boost air-side heat transfer coefficient to 3.5× that of smooth tubes, while optimized fin spacing (2.5mm) and height (12mm) balance flow resistance with heat transfer efficiency.
• Fluid dynamics simulation optimization: CFD-based tube bundle layout design maintains air velocity at 12-18 m/s, preventing thermal stress concentration from local turbulence while ensuring uniform film flow of cooling water outside tubes.

2.2 Intelligent Control and Monitoring

• Adaptive hydraulic discharge system: Flexible hydraulic units drive flap discharge mechanisms for precise material layer control (0-500mm), preventing local overheating from material accumulation in drying/cooling applications.
• Multi-parameter sensor network: Integrated temperature sensors (±0.5℃ accuracy), pressure sensors (±0.1% FS accuracy) and level controllers (±1mm repeatability) monitor cooler status in real-time, interfacing with DCS via Modbus TCP for fault预警 and energy optimization.

2.3 Anti-Fouling and Maintenance-Friendly Design

• Online backflush cleaning: Supports high-pressure water backflush (10-20 MPa) and automatic sponge ball cleaning during operation, with material selection based on deposit hardness (Mohs 1-5), extending cleaning cycles to 12 months.
• Redundant design: U-shaped removable tube bundles allow individual tube plugging (3-5° taper plugs) for up to 10% tube failure without shutdown.

3. Application Scenarios and Case Studies

3.1 Typical Industrial Applications

• Petrochemical: In ethylene cracking units, 1CII coolers reduce compressed air temperature from 220℃ to 80℃ between compression stages.
• Pharmaceutical: Provides sterile compressed air for fermentation tanks with Class 0 oil-free certification and 0.5μm filtration, meeting GMP standards.
• Mining: Optimized duct design (≥3.2㎡ frontal area) and low-temperature coatings (-40℃) address散热efficiency challenges in high-altitude mines.

3.2 Case Study Analysis

Case 1: Steel Group Oxygen Plant

• Challenge: Existing cooler suffered 15% efficiency drop due to scaling from hard water (350 mg/L).
• Solution: 1CII cooler with electronic descaling unit reduced scaling by 85%.
• Result: 90%+ heat exchange efficiency restored, saving 1.2M kWh/year.

Case 2: Battery Factory

• Challenge: Oil contamination risk in lithium battery electrode coating.
• Solution: 1CII cooler with graphite seals and 0.3 barg air barrier achieved <0.003 mg/m³ oil mist.
• Result: 99.8% product yield, saving ¥5M/year in defects.

4. Maintenance Strategy

4.1 Routine Inspection

• Thermal imaging: Monthly IR scans of tube joints/seals (investigate >15℃ differentials).
• Water quality: Maintain pH 7.5-8.5, hardness <200 mg/L, conductivity <1500 μS/cm with HEDP inhibitors.

4.2 Scheduled Maintenance

Interval	Task	Standard
Quarterly	Clean housing and fan filters	Filter ΔP ≤250 Pa
Biannually	Inspect seal ring wear	Radial clearance ≤0.15 mm
Annually	Replace hydraulic oil/seals	Oil cleanliness NAS 6
3 Years	Tube bundle hydrotest	1.5× design pressure for 30min

4.3 Troubleshooting

• Efficiency drop: Verify water flow/temperature → backflush if clean.
• Seal leaks: Locate with helium mass spectrometer, adjust seal air to 0.25-0.35 barg.
• Excessive vibration: Check fan balance/bearings (repair if tilt-pad clearance >0.08 mm).

5. Conclusion

The Centac Cooler 1CII delivers superior performance in industrial gas compression through its efficient heat transfer, intelligent controls, and anti-fouling design. Its modular construction and oil-free certification make it ideal for petrochemical, pharmaceutical,and new energy industries. Future integration of AI predictive maintenance will further optimize cleaning cycles and energy management, advancing industrial cooling systems toward greater efficiency and reliability.
