Pressure Vessel
Gas Tank

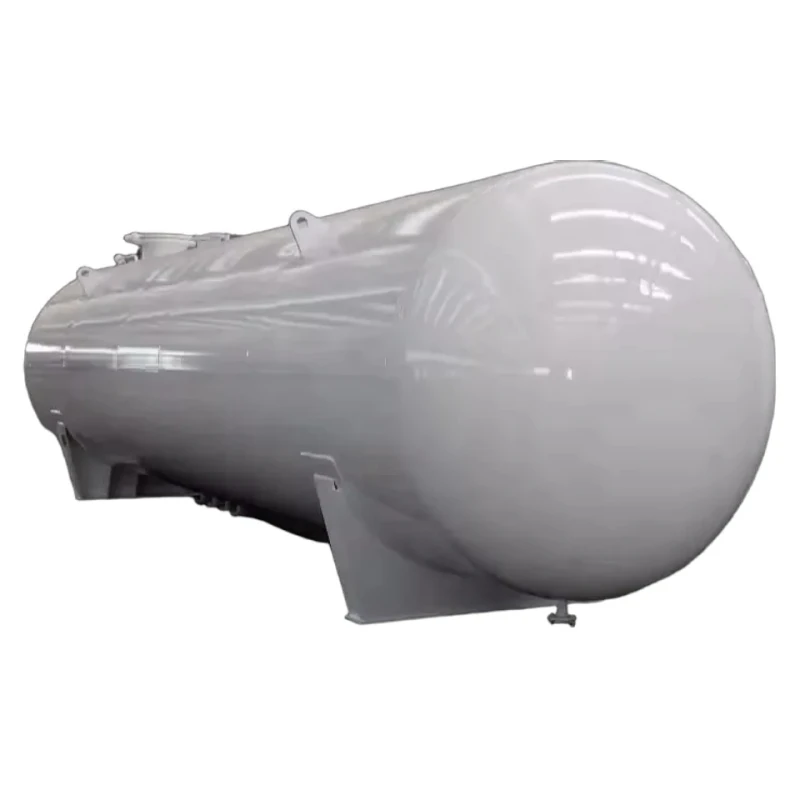

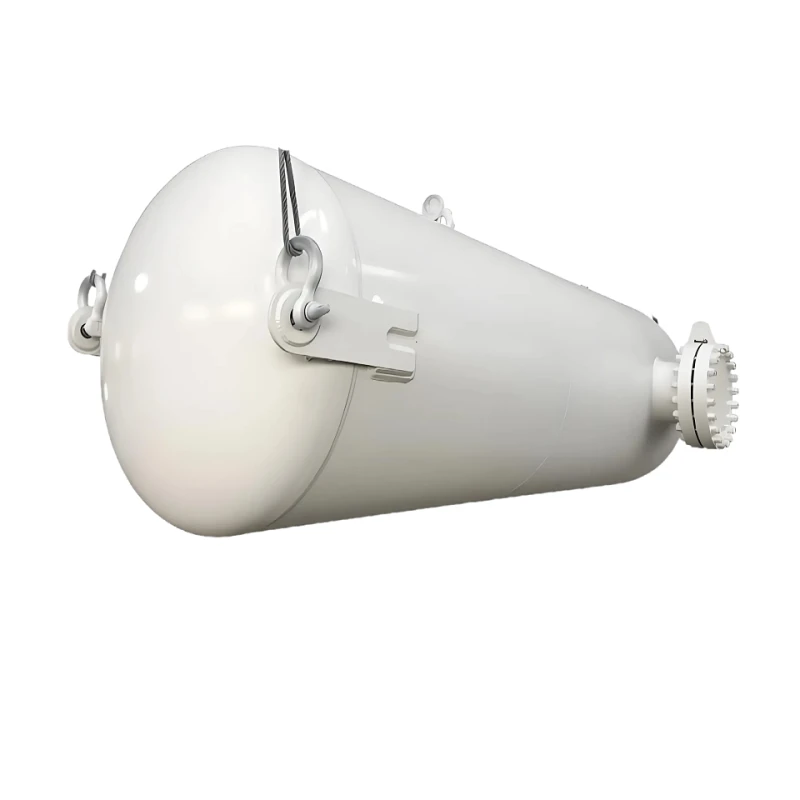

Industrial gas tank and pressure vessel designed for stable operation in oil & gas, chemical, and industrial compressor systems. Manufactured with controlled processes and advanced equipment to ensure safety, durability, and long service life.
Industrial Gas Tank & Pressure Vessel Overview
This gas tank and pressure vessel solution is designed for reliable operation in industrial environments where stable pressure control and long-term safety are required. The product is suitable for a wide range of industrial applications and is manufactured in compliance with recognized international standards.
Applications
The gas tank is widely used in the oil and natural gas industry, oil refineries, chemical and petrochemical plants, and industrial air compressor systems. Typical applications include gas storage, pressure buffering, and process support in continuous-operation systems.
Its design allows stable performance under fluctuating pressure conditions, making it suitable for both utility and process-related installations.
Material Options
Multiple material options are available to meet different operating conditions and media requirements, including carbon steel, stainless steel, alloy steel, copper, and titanium. Material selection is based on working pressure, temperature, corrosion resistance, and applicable standards to ensure long service life and operational safety.
Manufacturing Equipment & Capability
Production is supported by complete in-house manufacturing equipment, including heavy-duty plate rolling machines, advanced welding systems, and dedicated pressure testing equipment. Key manufacturing processes such as forming, welding, heat treatment, and final inspection are carried out under controlled conditions.
Modern facilities are equipped with internationally advanced large-scale pulse equipment, plasma arc welding machines, automatic polishing machines, and comprehensive laboratory and testing instruments to ensure consistent product quality.
Technical Range
Working Pressure: 0.1 MPa to 9.9 MPa
Material Types: Carbon steel, stainless steel, alloy steel
Applicable Standards: ASME, GB, and related international pressure vessel regulations
Quality Control
A modern quality management system is implemented throughout the production process. Each product undergoes multiple inspection stages, including dimensional checks, welding quality inspection, and pressure testing before delivery.
These procedures ensure traceability, compliance with specifications, and stable performance in long-term operation.
Project Experience
The manufacturer has experience supplying gas tanks and pressure vessels for industrial projects, including gas system components, heat exchanger projects for gas companies, and pressure vessel applications for international chemical enterprises such as BASF.
Commercial Terms
Delivery Time: 30 to 90 days, depending on specification and order volume
Payment Methods: Wire transfer (T/T), Letter of Credit (L/C)
Warranty & After-Sales Service
Warranty: 12 months after commissioning
After-Sales Service: Overseas technical support and after-sales service available
Item
| Volume | 60 CBM |
| Filling Weight | 23,940 kg |
| Tank Weight | 12,750 kg |
| Shell Thickness | 14 mm |
| Head Thickness | 16 mm |
| Tank Diameter | 2700 mm |
| Overall Size | 10,962 × 2,728 × 3,318 mm |
| Material | Carbon Steel Q345R |
| Design Pressure | 1.71 MPa |
| Hydraulic Test Pressure | 2.21 MPa |
| Design Temperature | -20°C ~ 50°C |
| Heat Treatment | Bulk |
| Corrosion Allowance | 1 mm |
| Medium Density | 580 kg/m³ |
| Vapor Outlet | DN50 |
| Gas Outlet | DN50 |
| Design Life | 15 years |
Model
| FV-SV-100 | Safety Valve DN100 | 1 | RF |
| FV-GV-50 | Stop Valve DN50 | 6 | RF |
| FV-GV-25 | Stop Valve DN25 | 2 | RF |
| FV-GV-100 | Stop Valve DN100 | 1 | RF |
| FV-NV-06 | Needle Valve M20×1.5 | 1 | / |
| FV-LG-60 | Magnetic Level Gauge | 1 | RF |
| FV-PG-04 | Pressure Gauge 0–4 MPa | 1 | / |
| FV-TG-60 | Thermometer -40°C ~ 60°C | 1 | / |
Share Article
| Brand Name: | Fete Vessel | Design Standard: | ASME, PED, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 3 years | Production standard: | GB150.ASME.European standard. |
What are your strengths?
Ans. Our strengths lie in our expertise in design and manufacturing.
What is your estimated delivery time?
Ans. The delivery time varies depending on the specific product. Typically, it ranges from 10 to 40 working days.
What are your primary product offerings?
Ans. Our primary product offerings include industrial heat exchangers, pressure vessel, air dryer.
How can I get in touch with you?
Ans. We are available 24/7 through TradeManager for immediate assistance. Alternatively, you can contact us via email, WhatsApp, Skype, or WeChat. Select one of our products and message us, and we will promptly respond.
What are your payment terms?
Ans. Our payment terms require a 50% TT deposit in advance, with the remaining 50% TT balance due before delivery. We also offer the option of utilizing Alibaba Trade Assurance Service. We welcome any additional suggestions or inquiries regarding payment methods.
