Pressure Vessel

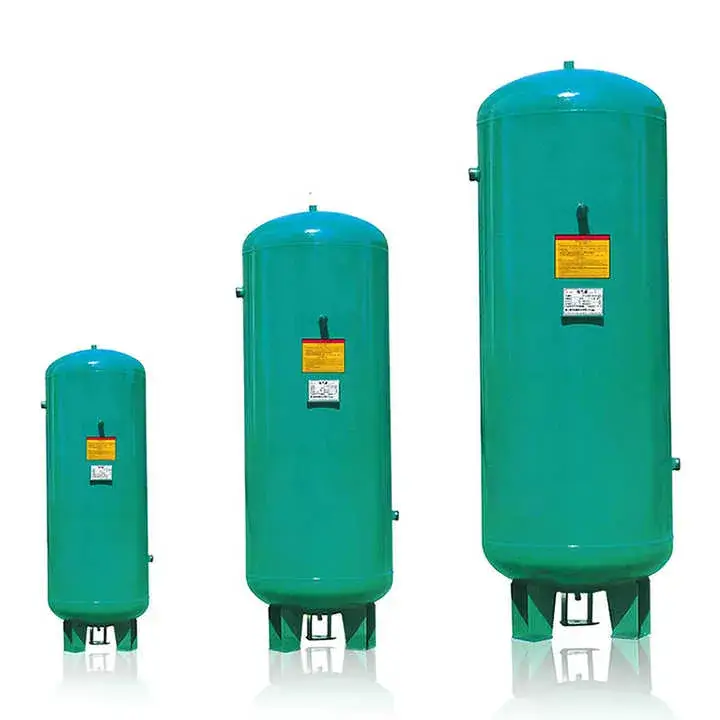

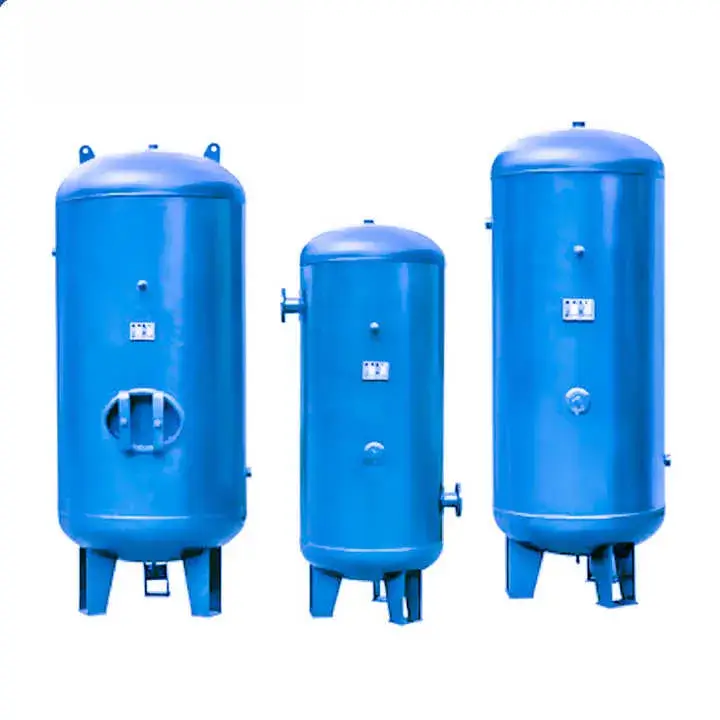

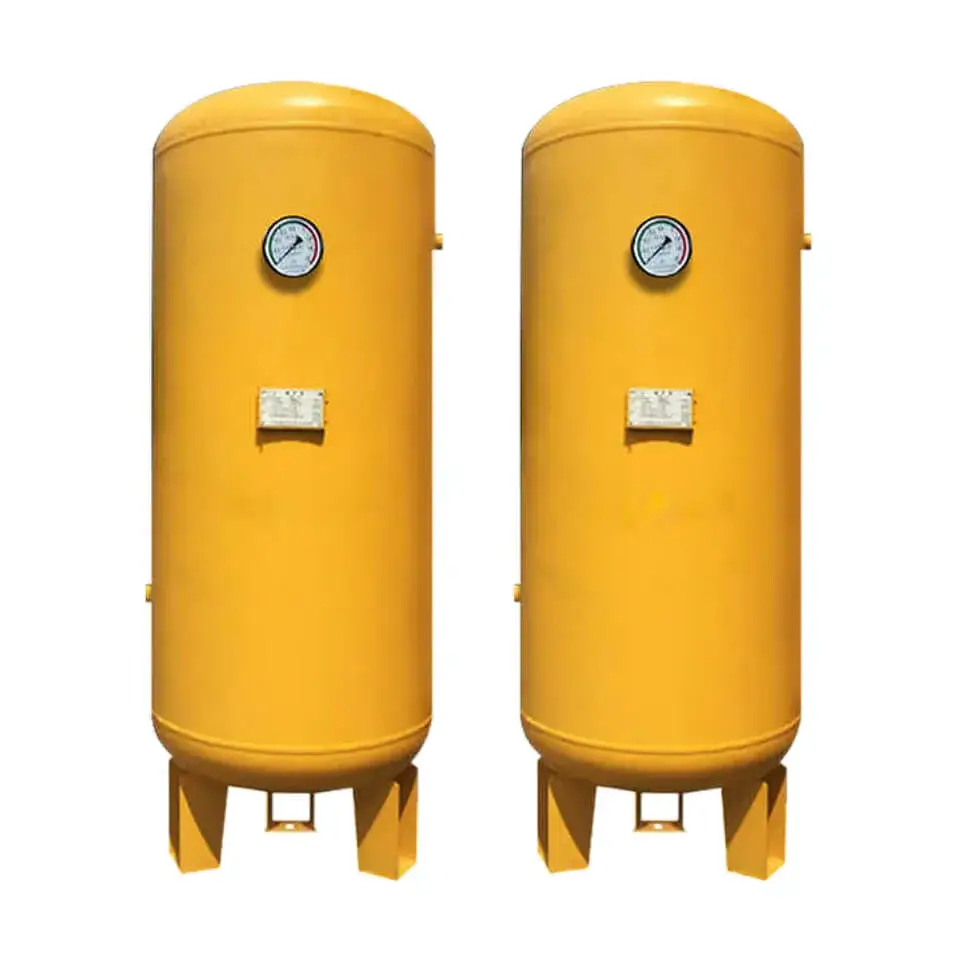

Air Receiver Tank
Main Parameters
Tank Orientation: Vertical
Volume/Capacity: 500L - 50000l
Storage Capacity: 1000-5000 L
Material: MS/ SS
Description
Description：

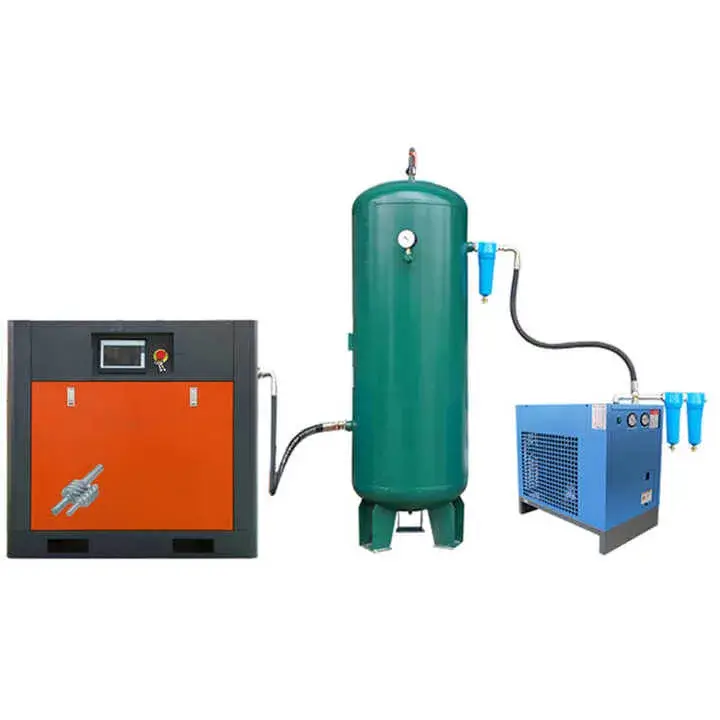

Air receiver tanks are essential components of compressed air systems. They provide temporary storage and enhance the system's overall efficiency. Given their crucial role and the significant pressure they endure, these tanks are designed for exceptional durability and strength.
Typically, an air receiver tank is 6 to 10 times the flow rate of the compressor system. For example, compressors rated at 25 standard cubic feet per minute (scfm) at 100 psi generally require a receiver tank with a minimum capacity of 150 cubic feet.
Air receiver tanks serve various purposes, including improving speed or torque, protecting against pressure fluctuations, and managing high flow-rate applications within the system.
Our selection of air receiver tanks ranges from 30 to 8,000 gallons, suitable for a wide range of applications. Our knowledgeable systems specialists can provide tailored guidance if you need assistance selecting the proper size.
Feel free to contact us today via phone or email for more information and to learn how our expertise can support your system.
Technical Parameters
| VOLUME(LITER) | PRESSURE(bar) | Diameter（mm） | Height(mm) | WEIGHT(kg) |
| 300 | 8bar | 74 | 198 | 125kg |
| 300 | 10bar | 74 | 198 | 125kg |
| 300 | 13bar | 74 | 198 | 125kg |
| 600 | 8bar | 650 | 2089 | 160kg |
| 600 | 10bar | 650 | 2089 | 160kg |
| 600 | 13bar | 650 | 2019 | 192kg |
| 600 | 16bar | 650 | 2111 | 185kg |
| 600 | 30bar | 650 | 2117 | 290kg |
| 1000 | 8bar | 800 | 2179 | 235kg |
| 1000 | 10bar | 800 | 2510 | 250kg |
| 1000 | 13bar | 800 | 2277 | 240kg |
| 1000 | 16bar | 800 | 2277 | 240kg |
| 1000 | 30bar | 800 | 2285 | 555kg |
| 1500 | 8bar | 1000 | 2360 | 375kg |
| 1500 | 10bar | 1000 | 2060 | 410kg |
| 2000 | 8bar | 1000 | 2860 | 450kg |
| 2000 | 10bar | 1000 | 2860 | 381kg |
Share Article
| Brand Name: | Fete Vessel | Design Standard: | ASME, PED, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 3 years | Production standard: | GB150.ASME.European standard. |
What are your strengths?
Ans. Our strengths lie in our expertise in design and manufacturing.
What is your estimated delivery time?
Ans. The delivery time varies depending on the specific product. Typically, it ranges from 10 to 40 working days.
What are your primary product offerings?
Ans. Our primary product offerings include industrial heat exchangers, pressure vessel, air dryer.
How can I get in touch with you?
Ans. We are available 24/7 through TradeManager for immediate assistance. Alternatively, you can contact us via email, WhatsApp, Skype, or WeChat. Select one of our products and message us, and we will promptly respond.
What are your payment terms?
Ans. Our payment terms require a 50% TT deposit in advance, with the remaining 50% TT balance due before delivery. We also offer the option of utilizing Alibaba Trade Assurance Service. We welcome any additional suggestions or inquiries regarding payment methods.
Feel free to Ask questions
Replacement support
Air Receiver Tank selection and replacement support
Fete Vessel supports engineers and purchasing teams who need a reliable replacement for Air Receiver Tank. Share the compressor model, cooler dimensions, drawings, operating pressure, temperature, medium, and old part photos, and our team will compare the details before recommending a suitable manufacturing plan.
Fit and drawings
We review cooler dimensions, nozzle position, mounting size, drawings, old part photos, and site installation details.
Material and test
Each order can be checked for material, tube bundle layout, pressure test requirements, coating, packing, and delivery schedule.
Repair or replace
For urgent maintenance projects, we can help check whether an existing cooler can be repaired, retubed, or replaced.
