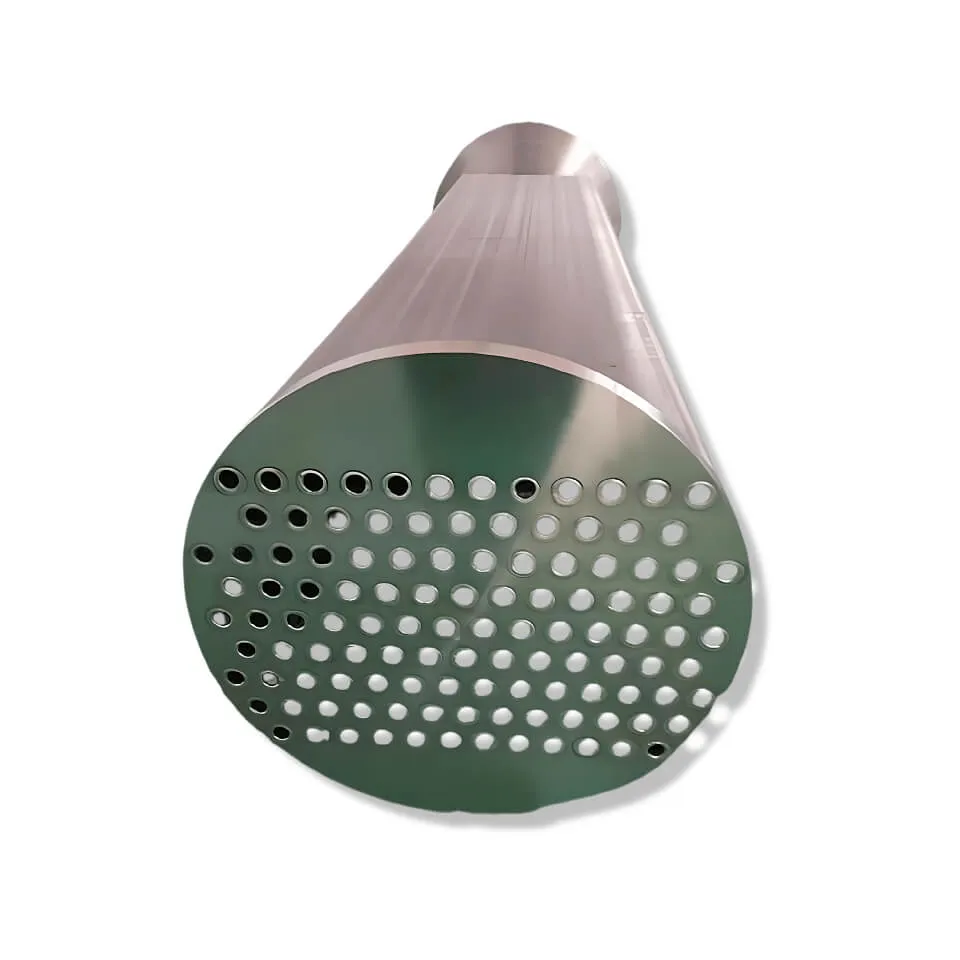

Atlas Copco PHE Oil Cooler

1. Product Overview

The Atlas Copco PHE series oil cooler represents the core heat exchange component in industrial compressed air systems, specifically engineered to address lubricant temperature rise under heavy-duty operations. As a flagship product from Atlas Copco's Industrial Technology division, its development leverages over a century of compressor expertise, with extensive applications in oil-injected screw compressors, centrifugal compressors, and diesel-driven mobile air compressors. Featuring an aluminum plate-fin structure for superior heat transfer and integrated with intelligent temperature control systems, this series maintains optimal oil temperatures between 70-90°C, significantly enhancing operational efficiency and equipment reliability.

2. Technical Specifications and Data-Driven Features

2.1 Core Structure and Manufacturing Advantages

Dual-Channel Aluminum Plate-Fin Design

• Utilizes multi-layer corrugated fins and separator plates in alternating arrangement, creating independent oil and water channels. Fluid dynamics-optimized with 1.2-1.8mm fin spacing and ±0.05mm channel height tolerance, ensuring oil-side pressure drop ≤0.3bar and water-side ≤0.15bar.
• High-frequency pulse brazing technology delivers weld joints achieving 95% of base material strength, passing 2.5x working pressure (60bar) hydrostatic tests with leakage rate ≤1×10⁻⁹ Pa·m³/s.

Anti-Corrosion Coating and Material Innovation

• Nano-scale epoxy resin coating validated by 1,000-hour salt spray testing, tripling corrosion resistance compared to conventional zinc plating.
• 6063-T6 aerospace-grade aluminum alloy core material provides 209W/(m·K) thermal conductivity (15% improvement over standard alloys) with 20% weight reduction.

2.2 Performance Parameters and Technical Indicators

Parameter	Specification
Cooling Capacity	15-250kW (at 40°C ambient, 100°C inlet oil temperature)
Oil Flow Range	50-500L/min (pressure drop ≤0.3bar)
Water Flow Range	20-200L/min (pressure drop ≤0.15bar)
Heat Exchange Efficiency	≥92% (LMTD calculation method)
Pressure Rating	Oil side: 60bar, Water side: 16bar
Vibration Resistance	Compliant with ISO 10816-3, withstands ≤15g acceleration
Temperature Range	-40°C to +150°C (short-term peak)

2.3 Intelligent Temperature Control System

• PID Closed-Loop Control: Elektronikon® controller with PT100 sensors maintains ±1°C accuracy.
• Adaptive Regulation: Dynamically adjusts cooling water flow based on ambient conditions, improving energy efficiency by 25% versus constant-flow designs.
• Fault Prevention: Triple monitoring (oil/water pressure + temperature differential) triggers alarms within 10 seconds of anomalies with cloud notifications.

3. Application Scenarios and Case Studies

3.1 Primary Applications

Oil-Injected Screw Compressors

Case Study: Automotive manufacturer's GA75+ compressor experienced 105°C+ oil temperatures due to scaled copper tube cooler. After upgrading to PHE 120 model, stabilized at 82±2°C, tripling bearing life and reducing annual downtime by 18 hours.

Centrifugal Compressors

Case Study: Petrochemical plant's ZR750 unit suffered coolant leaks from thermal stress cracks. PHE 250's dual-water-chamber design showed only 0.03bar pressure increase after 2,000 operational hours, maintaining ±1.5°C oil temperature stability.

3.2 Industry-Specific Solutions

Food & Pharmaceutical

FDA-compliant 316L stainless steel interfaces and food-grade silicone gaskets ensure complete oil/water separation. PHE 80 models achieve -40°C dew point for ISO 8573-1 Class 0 air quality in sterile environments.

Semiconductor Manufacturing

Laser-welded PHE 300 coolers pass -70°C cryogenic testing with ≤0.1mg/m³ particulate levels, meeting Class 1000 cleanroom standards for monocrystalline silicon crystal growth.

4. Maintenance Protocols

4.1 Routine Inspection

• Daily pressure differential checks (service required if >0.3bar)
• Monthly infrared temperature calibration (±3°C tolerance)
• Weekly helium mass spectrometer leak tests (≤5×10⁻¹² Pa·m³/s threshold)

4.2 Comprehensive Maintenance

Annual Overhaul:

• 4-hour citric-acid cleaning (pH=9.5) for scale/biofilm removal
• Eddy-current testing for weld cracks (>0.2mm requires replacement)
• ISO 1217 thermal performance validation

4.3 Troubleshooting Guide

Symptom	Root Cause	Solution	Prevention
High Oil Temperature	Insufficient coolant flow	Inspect pumps/valves/piping	Install flow switches with alarms
Coolant Leakage	Weld corrosion	Factory repair/replacement	Annual penetrant testing
Excessive Pressure Drop	Fouled fins/biofilm	High-pressure washing (≤50bar)	5μm pre-filters

5. Conclusion

The Atlas Copco PHE oil cooler series redefines industrial thermal management through material innovation, structural optimization, and intelligent control integration. Its aluminum plate-fin architecture delivers 20%+ weight and maintenance cost reductions while adaptive algorithms optimize energy efficiency. Documented applications demonstrate 40% fewer failures, 3x extended lubricant life, and enhanced production continuity across automotive, petrochemical, and semiconductor industries. As Industry 4.0 advances, PHE coolers will incorporate IoT-enabled predictive maintenance capabilities, progressing toward zero unplanned downtime objectives for compressed air systems.
