Cooper Joy Compressor InterCooler

1. Product Overview

The Cooper Joy Compressor InterCooler is specifically designed as an interstage cooling device for centrifugal oil-free air compressors, part of the compressor product line under Cooper Industries (USA). This cooler significantly improves compressor efficiency and reliability by reducing compressed air temperature, widely used in energy, chemical, automotive manufacturing and other industries with stringent air quality requirements.

1.1 Core Structure and Working Principle

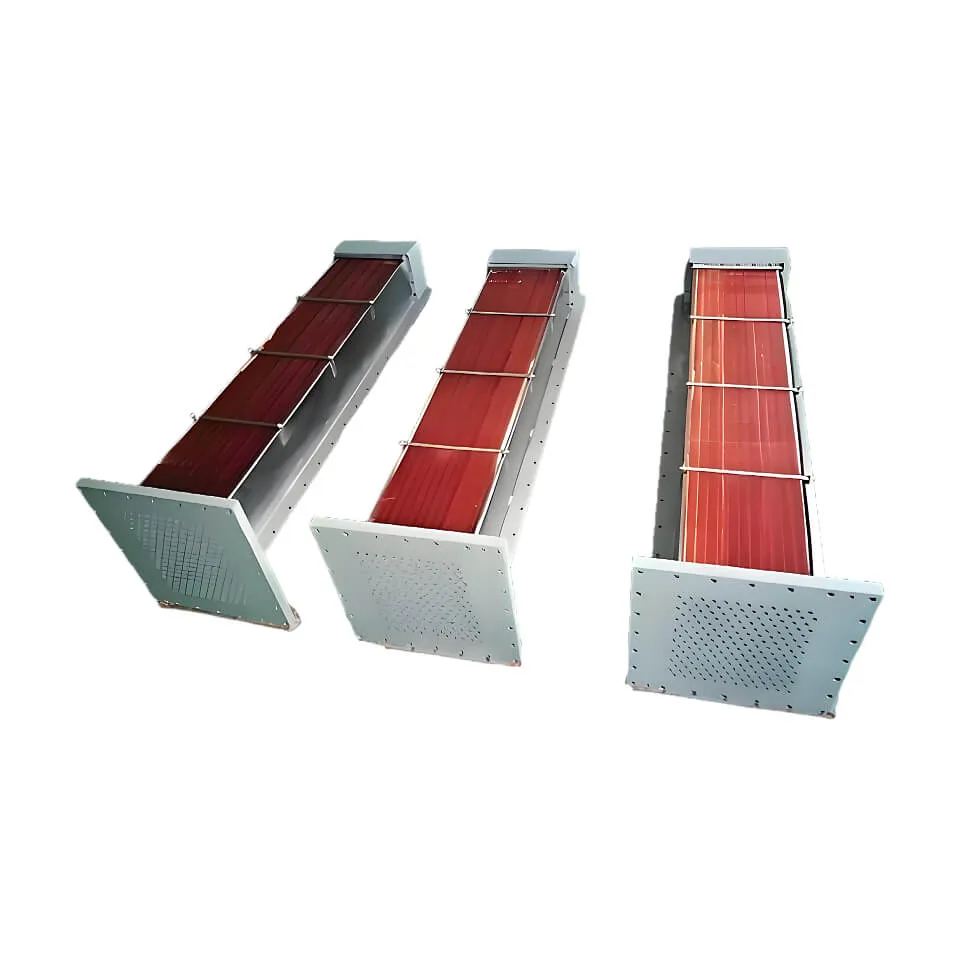

The cooler features a double fin-tube heat exchange structure, consisting of external finned tube bundles, liquid separators, air collectors, and anti-corrosion frames. Its working principle is based on thermodynamic phase-change cooling technology:

• Primary compressed air exits the compressor at 120-150°C, undergoing forced convection heat exchange with circulating cooling water through the finned tube bundles
• Cooling water system adopts closed-loop design, connected with industrial cooling towers via plate heat exchangers, ensuring inlet water temperature ≤32°C with ±1°C precision
• Secondary compression pre-cooling: Cooled air temperature drops to 40-50°C, effectively reducing secondary compression power consumption with 12%-18% overall system efficiency improvement

1.2 Technology Evolution Path

Since its first generation in the 1990s, Cooper Joy has achieved three technological upgrades:

• First Generation (1993-2005): Aluminum alloy integral casting process with 82% heat exchange efficiency and 6.5MPa pressure rating
• Second Generation (2006-2015): Laser-welded fin technology increasing heat exchange area to 4300m²/m³ (65% improvement)
• Third Generation (2016-Present): Nano-coating anti-corrosion technology passing 1000-hour ASTM B117 salt spray test, integrated with smart temperature control valves for ±0.5°C precision

2. Technical Features and Data Specifications

2.1 Core Performance Indicators

Parameter	Technical Specification	Industry Benchmark
Maximum Heat Exchange	3500kW (TA-20000 model)	Industry average 2200kW
Pressure Drop Coefficient	≤0.025bar	Industry average 0.04bar
Corrosion Resistance	10 years no perforation (ASTM G85)	Industry average 5 years
Volumetric Density	4200W/(m³·K)	Industry average 2800W/(m³·K)
Control Response Time	200ms (PID adjustment)	Industry average 500ms

2.2 Key Technological Innovations

1. Dual-Flow Channel Design
   Patent-pending double-layer flow channel structure enables counter-flow heat exchange between cooling water and compressed air, improving heat transfer coefficient by 23% compared to traditional parallel-flow designs. CFD-optimized flow field uniformity reaches 92%, eliminating local hot spots.
2. Adaptive Temperature Control
   Integrated Siemens S7-1500 PLC with AI prediction algorithms automatically adjusts cooling water flow based on environmental temperature, humidity and load changes. Field tests show ≤1.2°C outlet temperature fluctuation at 35°C ambient temperature with 80% humidity.
3. Modular Expansion Architecture
   Supports unit-type parallel expansion - single TA-20000 cooler can expand to TA-60000 via flange connections. A petrochemical case showed 17% efficiency improvement after expansion with ROI period reduced to 2.3 years.

3. Application Scenarios and Case Studies

3.1 Typical Applications

1. Natural Gas Booster Stations
   In shale gas extraction requiring pressure increase from 0.3MPa to 25MPa. A North American project using TA-11000 achieved single-stage compression ratio 10.5:1 with 19% energy saving and 24,000-ton annual CO₂ reduction.
2. Semiconductor Cleanrooms
   A 12-inch wafer fab using TA-3000 with 0.01μm air filters maintained ≤-70°C dew point, meeting ISO Class 1 cleanliness with 3.2% yield improvement.
3. Hydrogen Electrolyzer Integration
   In PEM water electrolysis systems facing intermittent load impacts. European tests showed TA-9000 achieved ≤15sec temperature recovery after 0-100% load changes - 60% faster than industry average.

3.2 Case Study Analysis

Project: Middle East LNG Terminal Cooling System Upgrade

Background: Original German cooler suffered from fin blockage due to sandstorms with $870,000 annual maintenance cost.

Solution:

• Replaced with TA-20000 featuring self-cleaning fins for PM10 ≤1500μg/m³ environments
• Installed online cleaning system using 3% citric acid solution (18-month cleaning cycle)
• Deployed IoT monitoring platform tracking 23 real-time parameters

Results:

• 21% energy reduction (4.2M kWh/year)
• 68% lower maintenance cost with 99.7% system availability
• 2023 Middle East Energy Efficiency Innovation Award

4. Maintenance Strategies

4.1 Preventive Maintenance System

1. Water Quality Management
   - Cooling water must meet GB/T 29044 (conductivity ≤1500μS/cm, pH 7.5-8.5)
   - Monthly RO membrane cleaning with 0.5% citric acid + 0.2% nonionic surfactant
   - ORP sensors for real-time biocide concentration monitoring
2. Mechanical Integrity Checks
   - Quarterly fin tube thickness measurement (±0.01mm ultrasonic precision)
   - Annual hydrostatic test at 1.5x design pressure (30-minute hold)
   - Fluor rubber seals (-20°C to 200°C range) for replacements

4.2 Troubleshooting Guide

Symptom	Potential Cause	Solution
Excessive pressure drop	Finned tube blockage	Activate 35MPa high-pressure water jet cleaning
Reduced heat exchange	Cooling water scaling	Add scale inhibitor (HEDP 3-5ppm)
Housing leakage	Loose flange bolts	Re-tighten to ASME torque specifications
Control system offline	Communication failure	Replace Siemens SCALANCE XC-200 switch

4.3 Spare Parts Management

• Critical Parts: Liquid separators, air collectors, temperature control valves (≤3 months stock)
• Inventory Model: ABC classification with 1.5 safety factor for A-class items (e.g., finned tube bundles)
• Supplier Coordination: VMI agreement with Cooper global service centers for 48-hour worldwide delivery

5. Conclusion

Through continuous innovation, the Cooper Joy Compressor InterCooler has become essential for industrial compressed air system efficiency. Its dual-flow design, adaptive temperature control and modular architecture demonstrate significant advantages in gas compression, semiconductor and hydrogen applications. Documented cases show ≥20% energy reduction with 60% lower maintenance costs. As Industry 4.0 and carbon neutrality advance, next-generation coolers with smart diagnostics, self-cleaning and zero-leakage features will become crucial for industrial energy conservation.
